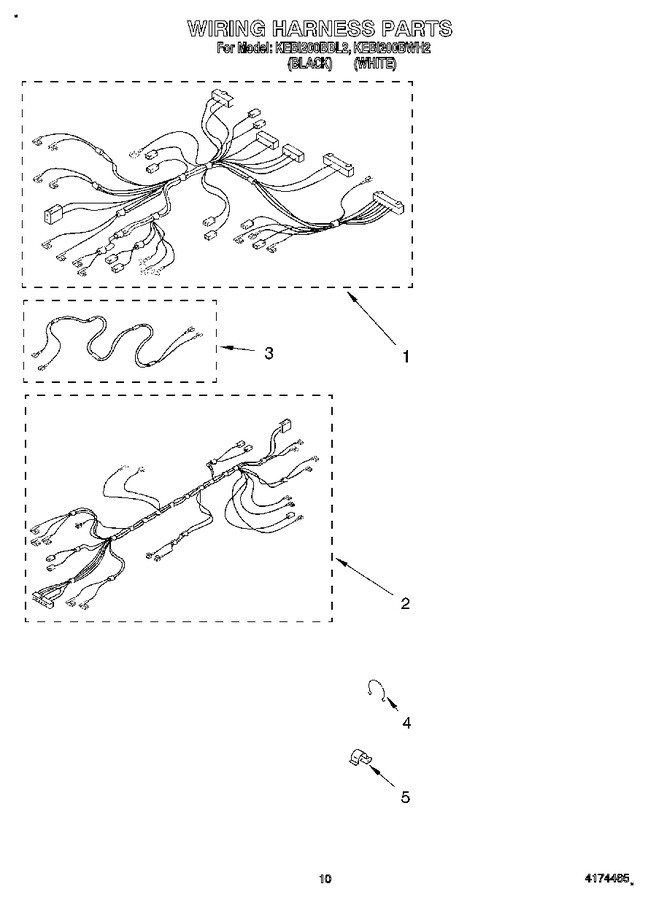

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3185968 | Harness, Wire Upper Oven |
|
- | |||||
| 2 | 3185985 | Harness, Wire Lower Oven |
|
- | |||||
| 3 | 3183751 | Wire Harness Lower Oven Light |
|
- | |||||
| 3 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 4 | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| 4 | 254225 | Screw, |
|
- | |||||
| 5 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 |
