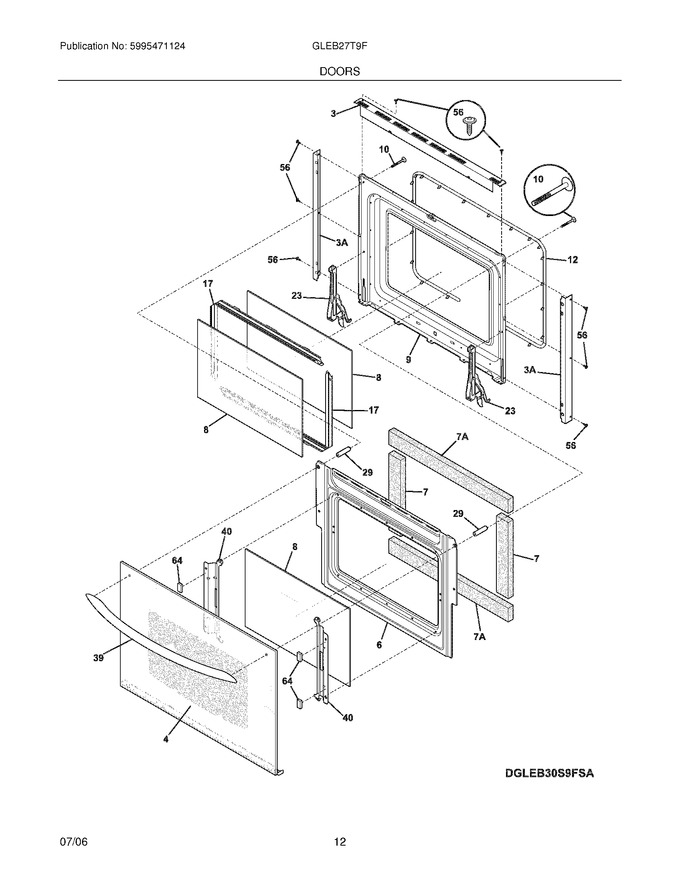

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260211		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318261351		Glass Assy.,oven Door ,white ,outer ,w/ Trim				$ 309.02
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259611		Liner,oven Door ,upper		Appelez-nous	-
10	316001002		Screw,wafer Head ,10-24 X 1.81 ,(2) ,handle Mtg.				$ 14.89
12	318053135		Seal,oven Door		Appelez-nous	-
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318024724		Hinge,door ,(2)		Appelez-nous	-
29	318014402		Spacer,door		Appelez-nous	-
39	5304457046		Handle,door ,white ,w/spacer		Appelez-nous	-
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318285061		Insulation,(2)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66
