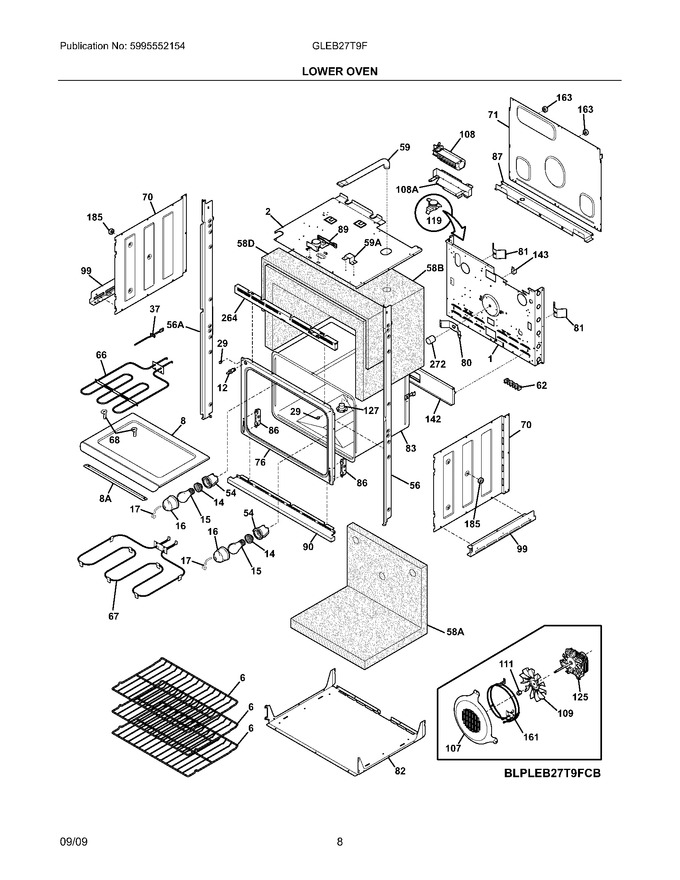

07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259213		Back,main		Appelez-nous	-
2	318258910		Shield,insulation ,upper		Appelez-nous	-
6	318345215		Rack,oven ,(3)				$ 124.74
8	318262011		Cover,element				$ 227.06
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	316517600		Spacer,oven Door				$ 12.05
54	318222400		Housing,oven Light				$ 58.22
56	318903602		Trim,side Filler ,white ,rh		Appelez-nous	-
59	318072560		Duct,oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
67	318254902		Element,bake ,2700w ,6 Pass				$ 211.91
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260001		Panel,rear Box		Appelez-nous	-
76	318056224		Front,oven		Appelez-nous	-
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258768		Shield,insulation ,lower		Appelez-nous	-
83	318261808		Liner,oven				$ 199.71
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260601		Bracket,cable Mtg.		Appelez-nous	-
90	318259710		Trim,oven Front ,white ,bottom				$ 121.91
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut-fan Retainer   (Replaces: 318399800)			Immediately	$ 19.13
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 75.13
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(4)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257711		Trim,oven ,black ,front		Appelez-nous	-
272	318249409		Tube,protector		Appelez-nous	-
56A	318903603		Trim,side Filler ,white ,lh		Appelez-nous	-
58A	318285060		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58B	318386110		Insulation,oven Wrapper		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
59A	318261600		Bracket,vent Tube		Appelez-nous	-
8A	318318600		Bracket,element ,hidden Bake				$ 37.17
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F119	318004900		Switch,thermal				$ 60.25
F125	5304463302		Motor,fan   (Replaces: 318398200)			Immediately	$ 259.95
F161	318255504		Element,convection ,350 W				$ 97.07
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255606		Element,broil ,3400w   (Replaces: 318255601)			Immediately	$ 197.39
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318199768		Wiring Harness,latch ,bas		Appelez-nous	-
FNI	318199787		Wiring Harness,latch ,no Bas		Appelez-nous	-
FNI	318402206		Wiring Harness,main ,latch		Appelez-nous	-
FNI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 174.43
FNI	318532128		Harness,wiring ,main		Appelez-nous	-
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	318340201		Bracket,insul. Panel		Appelez-nous	-
