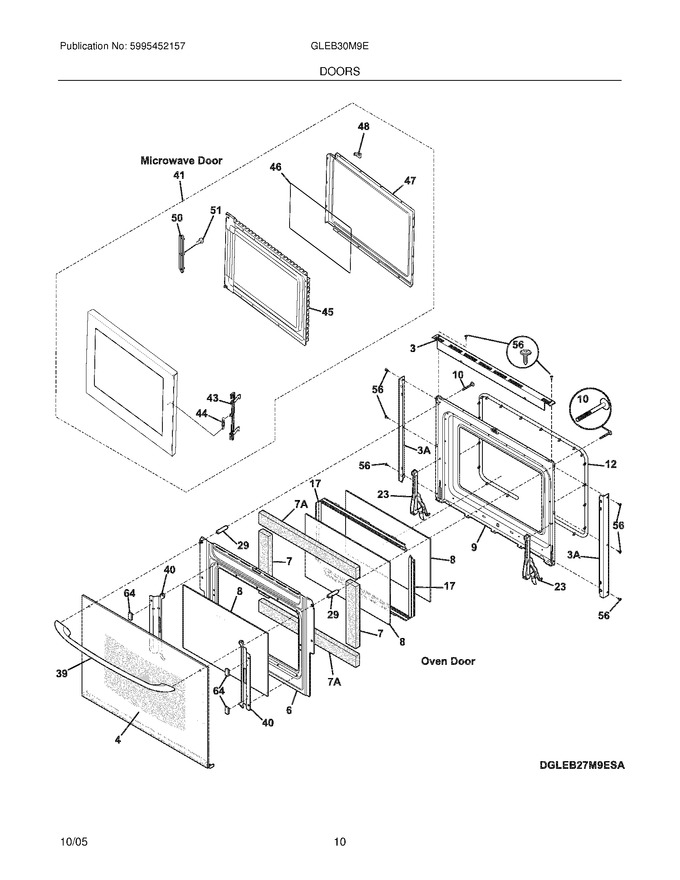

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318403500		Glass Assy.,oven Door ,black ,outer ,w/ Trim   (Replaces: 318261300)				$ 304.77
6	318260500		Baffle,door		Appelez-nous	-
7	318372017		Insulation,oven Door   (Replaces: 318285057)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259601		Liner,oven Door				$ 99.12
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
12	318053120		Seal,oven Door   (Replaces: 318053130)			Immediately	$ 159.62
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
23	5303310828		Hinge-oven Door, (2)		Appelez-nous	-
29	318014402		Spacer,door		Appelez-nous	-
39	318231200		Handle,black		Appelez-nous	-
40	318382302		Bracket,glass Holder ,(2)   (Replaces: 318242700)				$ 50.81
41	5304452257		Door Assembly,complete ,black		Appelez-nous	-
43	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
44	5304440316		Spring,door Latch			Immediately	$ 61.00
45	5304440857		Panel,inner Door ,black				$ 192.29
46	5304440860		Seal,door ,film				$ 63.09
47	5304440861		Frame,choke Cover ,inner Door				$ 73.02
48	5304442145		Door Stop		Appelez-nous	-
50	5304440862		Door Stop		Appelez-nous	-
51	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer,(2)				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,oven Door   (Replaces: 318285062)				$ 17.72
NI	5303323277		Screw (8-18x13/32)				$ 8.66
