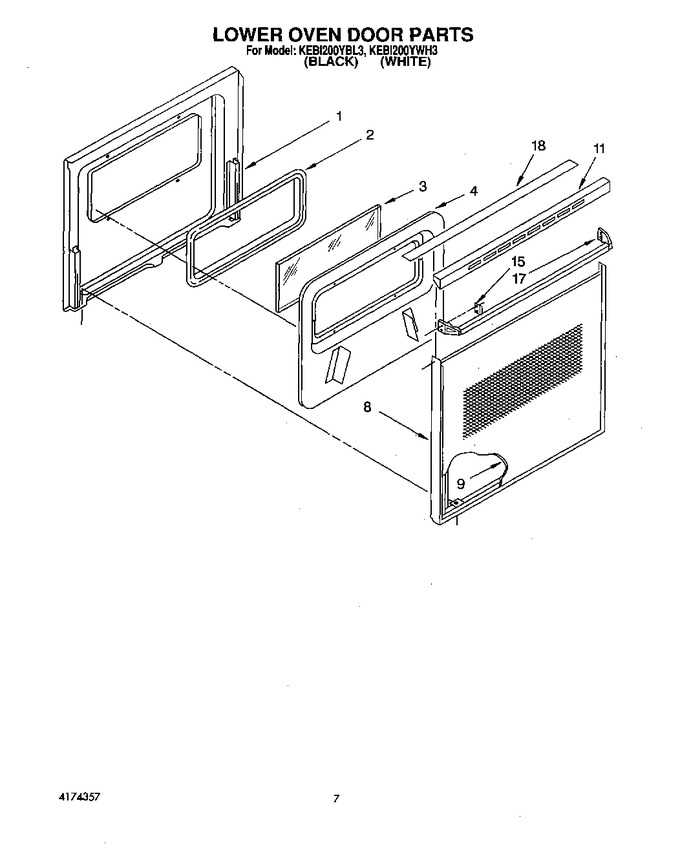

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172220		Liner, Door		Appelez-nous	-
1	WP488729		Screw (3)   (Replaces: 3148107)			Immediately	$ 7.01
1	311056		Screw, (4)		Appelez-nous	-
2	3148183		Seal, Door				$ 7.41
3	3169202		Glass, Inner		Appelez-nous	-
4	3148443		Screw (6)		Appelez-nous	-
4	3148287		Retainer, Insulation		Appelez-nous	-
8	3148235		Frame, Door		Appelez-nous	-
9	3150347		Glass, Panel (white)		Appelez-nous	-
9	3148185		Glass, Panel (black)		Appelez-nous	-
11	3148223		Top, Door (black)		Appelez-nous	-
11	3149355		Top, Door Frame (white Model)		Appelez-nous	-
15	3185918		Screw		Appelez-nous	-
15	3148282		Clip (2)				$ 8.69
17	WP355515		Handle, Oven Door (screw, Handle (4))   (Replaces: 355515)				$ 6.90
17	3183403		Handle, Oven Door (white)		Appelez-nous	-
17	3185918		Handle, Oven Door (screw)		Appelez-nous	-
17	3149333		Handle, Oven Door (screw (5))				$ 5.33
17	3183402		Handle, Oven Door (black)		Appelez-nous	-
18	3181363		Cap, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
