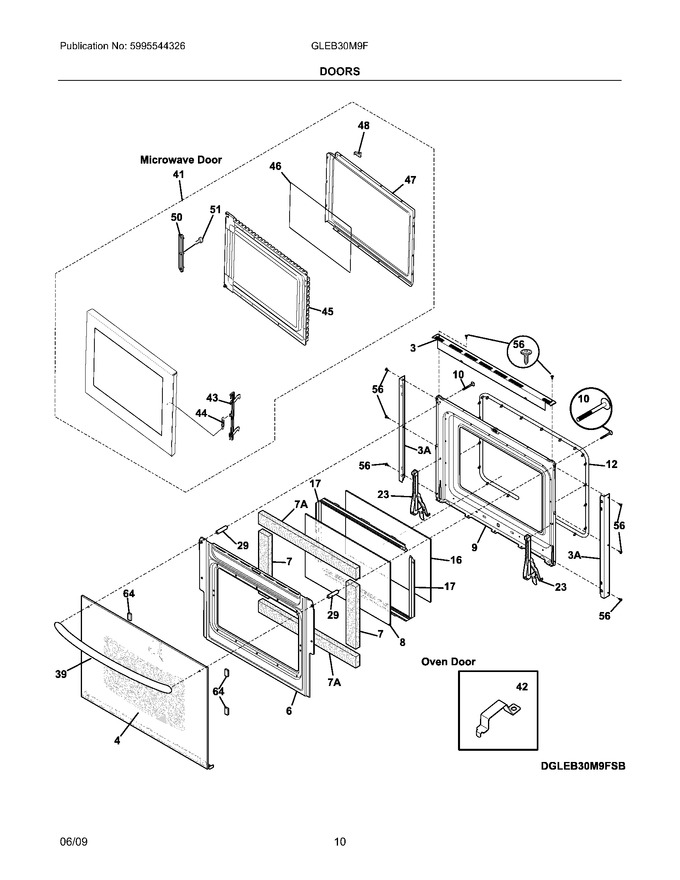

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318403500		Glass Assy.,oven Door ,black ,outer ,w/ Trim   (Replaces: 318261300)				$ 304.77
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318360111		Liner,oven Door ,upper				$ 147.68
10	5304459529		Screw,handle Mtg. ,no.10-24 X 1 7/8 ,(2)				$ 10.12
10	240442708		Screw,handle Mtg ,10-32 X 3/4   (Replaces: 5304400794)				$ 8.34
12	318053121		Seal,oven Door ,upper				$ 99.91
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
23	318567101		Hinge,oven Door ,(2)				$ 76.18
29	318014405		Spacer,door		Appelez-nous	-
39	318372412		Handle,door ,black ,w/spacer				$ 121.75
41	5304452257		Door Assembly,complete ,black		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
43	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
44	5304440316		Spring,door Latch			Immediately	$ 61.00
45	5304440857		Panel,inner Door ,black				$ 192.29
46	5304440860		Seal,door ,film				$ 63.09
47	5304440861		Choke Cover,inner Door				$ 73.02
48	5304442145		Door Stop		Appelez-nous	-
50	5304440862		Door Stop		Appelez-nous	-
51	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	5303323277		Screw (8-18x13/32)				$ 8.66
