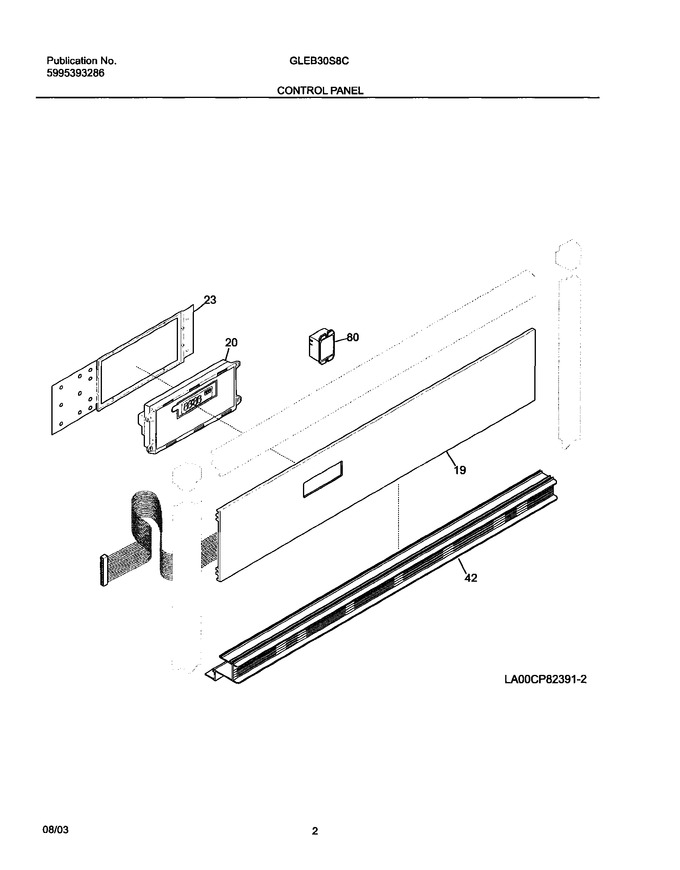

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030145		Panel,control ,black		Appelez-nous	-
23	318111602		Bracket,clock & Relay		Appelez-nous	-
42	318027409		Trim-vent, Black		Appelez-nous	-
F20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
F80	318111501		Relay,convection ,oven Light ,(1)				$ 85.10
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
