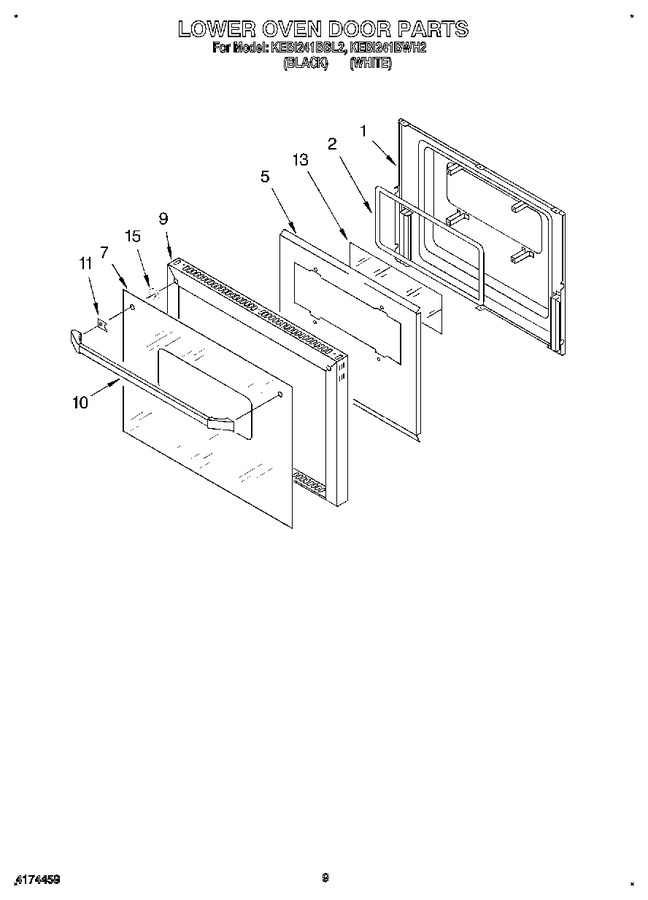

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185500		Liner, Door		Appelez-nous	-
1	3178001		Screw, Black (2)		Appelez-nous	-
1	4168863		Screw (6)		Appelez-nous	-
2	3185462		Seal, Window		Appelez-nous	-
5	3188815		Retainer, Insulation		Appelez-nous	-
5	3185647		Screw		Appelez-nous	-
7	3187864		Glass, Door (black Model)		Appelez-nous	-
7	3187866		Glass, Door (white Model)		Appelez-nous	-
9	3187853		Frame, Door (white Model)		Appelez-nous	-
9	3187851		Frame, Door (black Model)		Appelez-nous	-
10	3185989		Handle, Door (black Model)		Appelez-nous	-
10	3181637		Handle, Door (screw (2))		Appelez-nous	-
10	3185990		Handle, Door (white Model)		Appelez-nous	-
11	3182138		Spacer (2)		Appelez-nous	-
13	3185457		Glass, Clear		Appelez-nous	-
15	3188599		Bushing, Door Handle		Appelez-nous	-
