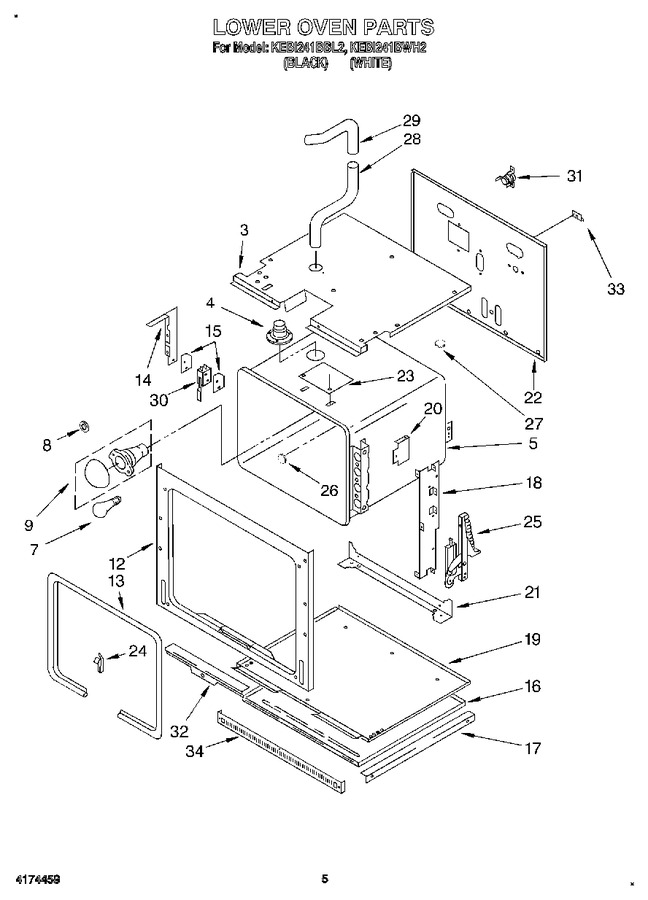

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	3183747		Module, Top		Appelez-nous	-
3	3185647		Screw		Appelez-nous	-
4	3186933		Tube, Vent		Appelez-nous	-
4	3185383		Screw (3)		Appelez-nous	-
5	3185561		Liner, Oven		Appelez-nous	-
7	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
8	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
9	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
12	3177704		Frame, Door		Appelez-nous	-
13	3179814		Seal, Door		Appelez-nous	-
14	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 6.47
14	3177681		Bracket, Switch		Appelez-nous	-
15	3177923		Insulator, Switch		Appelez-nous	-
16	3177552		Bottom, Oven		Appelez-nous	-
17	3179220		Rail, Support (2)		Appelez-nous	-
17	3185647		Screw		Appelez-nous	-
18	3185647		Screw		Appelez-nous	-
18	3179795		Screw (6)		Appelez-nous	-
18	3177433		Bracket, Hinge (2)		Appelez-nous	-
19	3177622		Bottom, Module		Appelez-nous	-
20	3185647		Screw		Appelez-nous	-
20	3178612		Shield, Radiation		Appelez-nous	-
20	3179795		Screw (6)		Appelez-nous	-
21	3177434		Support, Oven		Appelez-nous	-
21	3185647		Screw		Appelez-nous	-
22	3185647		Screw		Appelez-nous	-
22	3177559		Back, Module		Appelez-nous	-
23	3180126		Cover, Latch Mtg.		Appelez-nous	-
23	3185648		Screw (2)		Appelez-nous	-
24	3179848		Clip, Seal (2)		Appelez-nous	-
25	3178298		Hinge, Door (2)		Appelez-nous	-
26	3182814		Button, Plug		Appelez-nous	-
27	3185085		Button, Plug		Appelez-nous	-
28	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
28	3182159		Tube, Vent Male		Appelez-nous	-
29	3182160		Tube, Vent Female		Appelez-nous	-
30	313489		Screw (2)		Appelez-nous	-
30	4173553		Switch, Door		Appelez-nous	-
30	4159117		Nut (2)		Appelez-nous	-
31	3149653		Thermostat				$ 134.40
32	4168863		Screw		Appelez-nous	-
32	3179776		Screw		Appelez-nous	-
32	3179587		Retainer, Seal		Appelez-nous	-
33	4168203		Cover, Cap Tube		Appelez-nous	-
33	3185647		Screw		Appelez-nous	-
33	4159445		Screw		Appelez-nous	-
34	3177870		Insulation, Back		Appelez-nous	-
34	3177784		Trim, Lower Vent (black Model)		Appelez-nous	-
34	3187958		Trim, Lower Vent (white Model)		Appelez-nous	-
34	3185550		Insulation, Wrap		Appelez-nous	-
