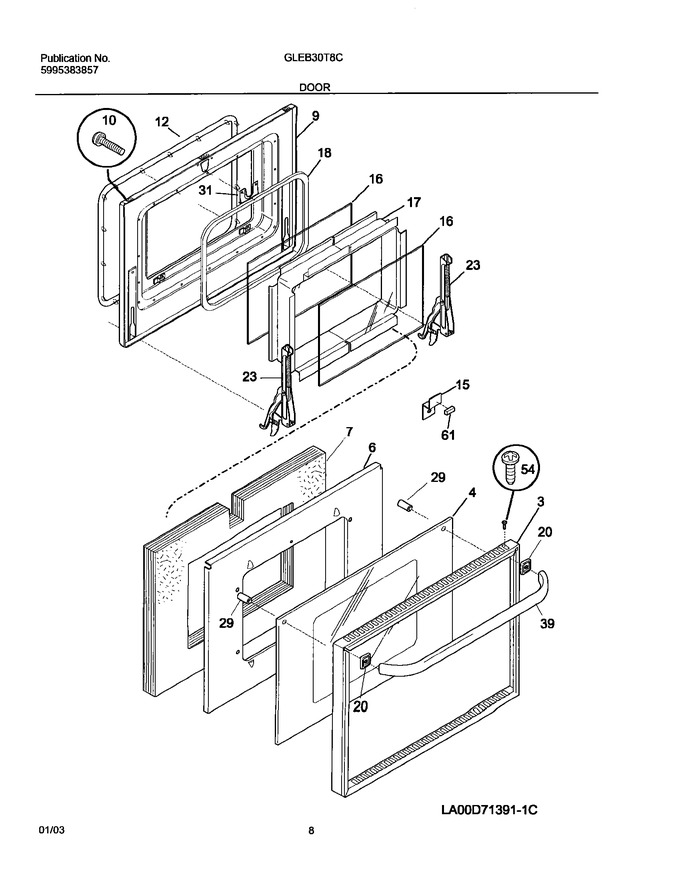

09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026720		Trim,oven Door ,black				$ 124.95
4	318041315		Glass,oven Door ,black ,outer				$ 160.39
6	318056811		Shield-air Wash		Appelez-nous	-
7	318133754		Insulation,oven Door		Appelez-nous	-
9	318048606		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw-handle, Door				$ 12.71
12	318053103		Gasket,oven Door Seal			Immediately	$ 150.03
15	318091102		Bracket-glass,(3)		Appelez-nous	-
16	318041603		Panel,glass ,inner Oven Door				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318014300		Spacer-handle, Black, (2)				$ 36.44
23	5303310506		Hinge-oven Door,assembly		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
39	316091110		Handle,oven Door ,black		Appelez-nous	-
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
61	5303316982		Foam Seal,(3)		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
