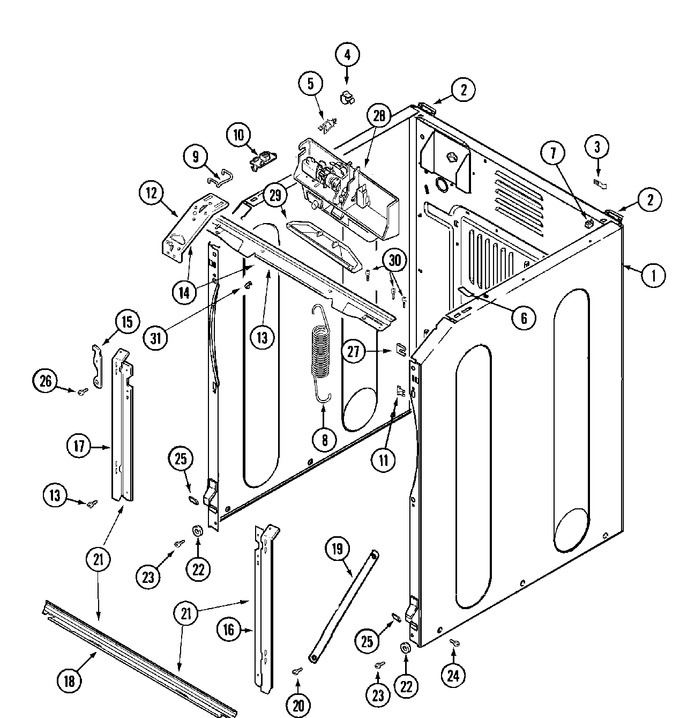

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22003639 | Cabinet Assy. (wht As Pk) | 72 |
|
- | ||||
| 001 | NLA | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 002 | W11573574 | Screw, Hinge (Replaces: 22001995) | 67 |
|
Immediately | $ 12.62 | |||
| 002 | 22003367 | Hinge, Plastic | 67 |
|
- | ||||
| 003 | 22002178 | Bracket, Air Dome Hose | 10 |
|
- | ||||
| 003 | WP489128 | Screw, Bracket (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 004 | WP308605 | Clip, Wire Harness (Replaces: 22002014) | 10 |
|
$ 10.08 | ||||
| 005 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 006 | 33001836 | Strap, Top Cover Support | 10 |
|
- | ||||
| 007 | 310933 | Fastener | 10 |
|
- | ||||
| 008 | 22002100 | Spring | 10 |
|
$ 22.82 | ||||
| 009 | 22002297 | Support, Spring | 10 |
|
$ 5.84 | ||||
| 010 | 22001997 | Spacer, Top Cover | 10 |
|
- | ||||
| 011 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 012 | 22002090 | Brace, Corner | 10 |
|
- | ||||
| 012 | 22002292 | Brace, Corner (lt) | 10 |
|
- | ||||
| 012 | 22003622 | Brace, Corner (rt) | 69 |
|
- | ||||
| 012 | 22003623 | Brace, Corner (lt) | 69 |
|
- | ||||
| 013 | 22002015 | Support, Door Lock | 10 |
|
- | ||||
| 013 | 22003626 | Support, Door Lock | 69 |
|
- | ||||
| 014 | 22003637 | Brace Assembly, Top Cross Contains Items 12 & 13 | 10 |
|
- | ||||
| 015 | 22002247 | Hook, Security | 10 |
|
- | ||||
| 016 | 22003224 | Bracket, Shroud (rt) | 10 |
|
- | ||||
| 016 | 22003625 | Bracket, Shroud Support (rt) | 69 |
|
- | ||||
| 017 | 22002985 | Bracket, Shroud (lt) | 10 |
|
- | ||||
| 017 | 22003624 | Bracket, Shroud Support (lt) | 69 |
|
- | ||||
| 018 | 22002505 | Bridge, Shroud Support | 10 |
|
- | ||||
| 018 | 22003664 | Support, Lower Shroud | 69 |
|
- | ||||
| 019 | 22002767 | Brace, Cross | 10 |
|
- | ||||
| 020 | W11573574 | Screw, Cross Brace (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 021 | 22003638 | Shroud Support Assembly Contains Items 16, 17, & 18 | 69 |
|
- | ||||
| 022 | 22002025 | Disc, Front Panel Spacer | 10 |
|
- | ||||
| 023 | W11573574 | Screw, Front Cabinet (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 024 | 213007 | Screw, Cabinet | 10 |
|
$ 10.99 | ||||
| 024 | 213007 | Screw, Cabinet (Replaces: 22003409) | 67 |
|
$ 10.99 | ||||
| 025 | 22002239 | Clip, Lower Front Panel | 10 |
|
$ 5.84 | ||||
| 026 | W11573574 | Screw, Shroud Support (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 027 | 22002049 | Clip, Panel | 10 |
|
$ 8.40 | ||||
| 028 | 12002535 | Motor, Wax (Replaces: 22002119) | 10 |
|
Immediately | $ 20.30 | |||
| 028 | NLA | Latch, Assy. (commercial) | 10 |
|
- | ||||
| 029 | 22002957 | Cover, Latch Assembly (lwr) | 10 |
|
- | ||||
| 030 | W11573574 | Screw, Door Latch Support (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 031 | WP308605 | Clip (Replaces: 22002014) | 10 |
|
$ 10.08 |
