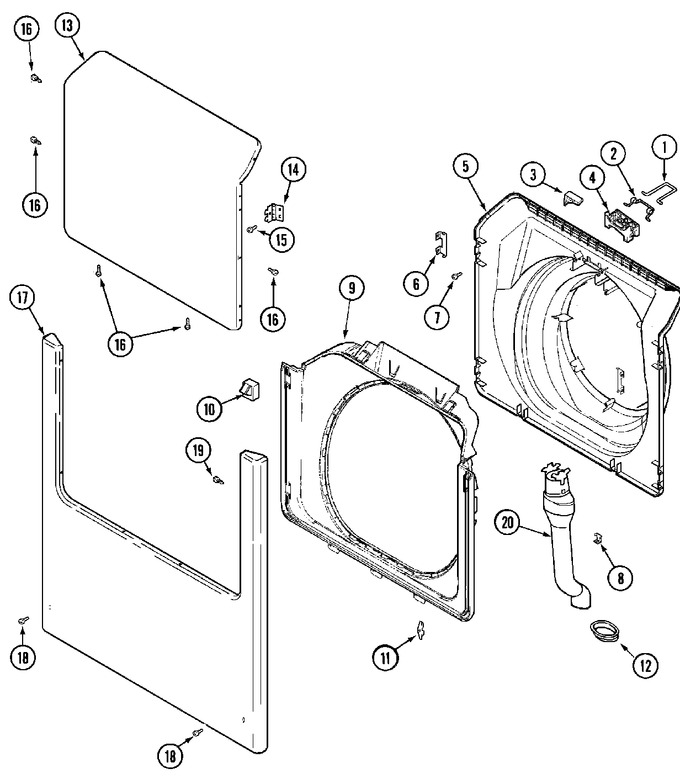

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 22003222 | Hoop, Lock | 10 |
|
- | ||||
| 002 | 22002003 | Spring, Latch | 10 |
|
$ 5.70 | ||||
| 003 | 22002355 | Door, Inner/door Strike (wht) (must Order Assembly To | 10 |
|
- | ||||
| 003 | 22003800 | Inner Door/vented (aspk-wht) | 76 |
|
$ 156.60 | ||||
| 004 | 22002168 | Support, Lock Hoop | 10 |
|
$ 6.85 | ||||
| 005 | 22003083 | Liner, Door Assy W/vent (wht) | 10 |
|
$ 291.08 | ||||
| 006 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 007 | 22002007 | Screw, Strike | 10 |
|
- | ||||
| 008 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 009 | 22002234 | Shroud, Plastic (wht) | 10 |
|
- | ||||
| 009 | 22002333 | Label, Open Door (washer) | 10 |
|
- | ||||
| 010 | 22002046 | Switch, Secondary Door (wht) | 10 |
|
- | ||||
| 011 | 22002095 | Cover, Hinge (wht) | 10 |
|
- | ||||
| 011 | 33001764 | Cover, Hinge Hole (wht) | 75 |
|
$ 36.41 | ||||
| 011 | WP33001787 | Screw (Replaces: 33001846) | 75 |
|
$ 10.45 | ||||
| 012 | WP22003075 | Grommet, Vent Tube (Replaces: 22003075) | 10 |
|
$ 50.41 | ||||
| 013 | 22001979 | Door, Outer (wht-w/damper) | 10 |
|
- | ||||
| 013 | 22002333 | Label, Open Door (washer) | 10 |
|
- | ||||
| 014 | 22002001 | Support, Hinge | 10 |
|
- | ||||
| 014 | WP22002798 | Hinge, Door (Replaces: 22002798) | 10 |
|
$ 77.72 | ||||
| 014 | W10124350 | Not Required (hinge Support) | 69 |
|
- | ||||
| 015 | WP98006631 | Screw, Hinge (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 015 | 22002243 | Screw, Front Panel & Hinge | 10 |
|
- | ||||
| 015 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 016 | 22002063 | Screw No.8-18ab Wafer Hd | 10 |
|
$ 5.48 | ||||
| 017 | 22002241 | Panel, Front (wht) | 10 |
|
- | ||||
| 018 | 22001496 | Screw, Front Panel | 10 |
|
$ 5.38 | ||||
| 019 | 22002243 | Screw, Panel | 10 |
|
- | ||||
| 019 | 22002244 | Clip, Grounding | 10 |
|
- | ||||
| 020 | 22003576 | Vent Tube Assy. | 10 |
|
- |
