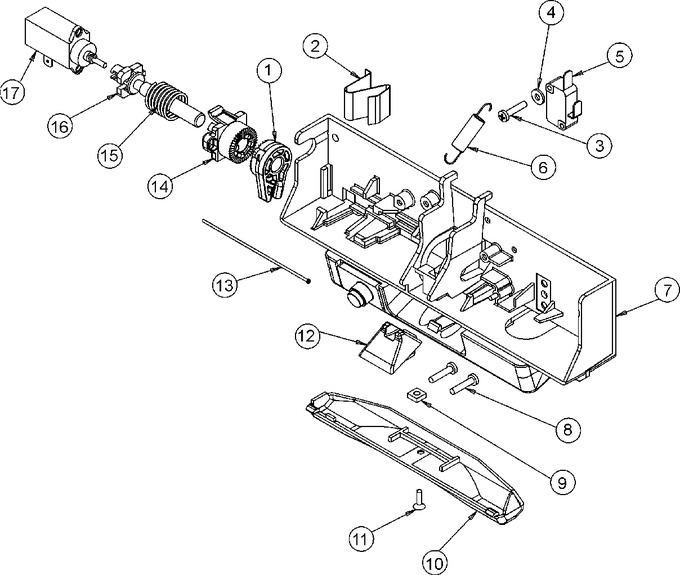

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003716		Rotating Gear, Latch	10			$ 5.51
002	22003717		Spring, Latch	10			$ 0.80
003	22001352		Screw, Check Switch	10	Appelez-nous	-
004	22002165		Washer, Door Lock Switch	10	Appelez-nous	-
005	WP22002162		Switch, Door Lock Spin Enable   (Replaces: 22002162)	10		Immediately	$ 51.28
006	22002158		Spring, Gear Return	10	Appelez-nous	-
007	22003722		Switch Holder Assy, Latch	10			$ 67.14
008	22003719		Screw, Latch	10	Appelez-nous	-
009	22003720		Nut, Latch	10	Appelez-nous	-
010	22002957		Cover, Latch Assembly (lwr)	10	Appelez-nous	-
011	WP241877		Screw   (Replaces: 22002435)	10			$ 3.56
012	22003055		Ramp, Door Hoop	10			$ 27.77
013	22002164		Cable, Door	10	Appelez-nous	-
014	22003715		Sliding Gear, Latch	10			$ 5.84
015	22003721		Spring, Axle / Latch	10			$ 6.56
016	22003718		Axle, Latch	10			$ 5.84
017	12002535		Motor, Wax   (Replaces: 22002119)	10		Immediately	$ 20.30
