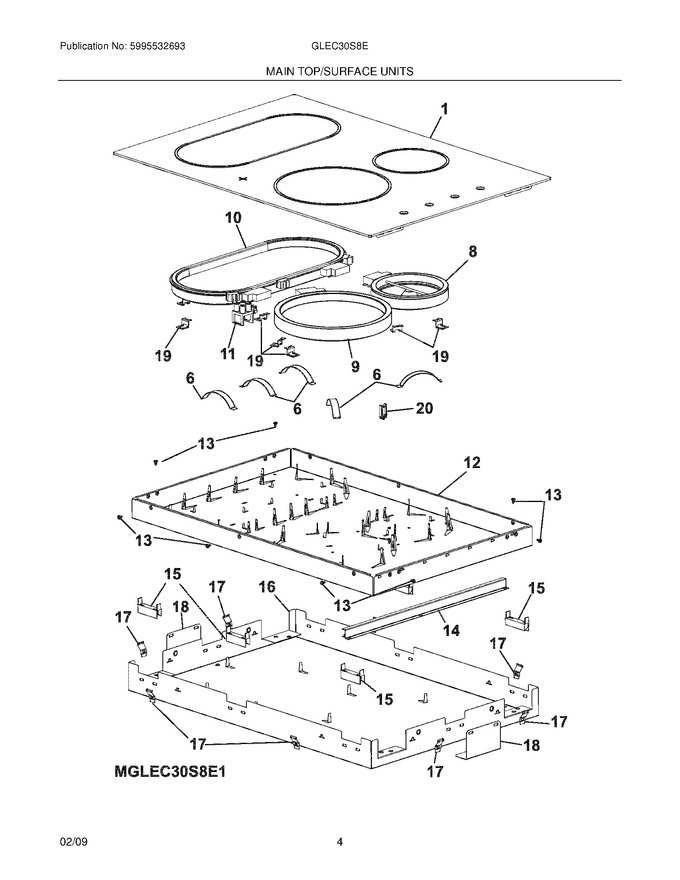

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305379393		Maintop Assembly,glass/steel ,black				$ 623.49
6	387372900		Spring,surface Element				$ 15.17
12	387558800		Box,burner ,inner		Appelez-nous	-
13	131243700		Screw,b4 ,2 X 9 ,5   (Replaces: 330447900)				$ 3.36
14	387683500		Support,burner Box		Appelez-nous	-
15	387627600		Spacer,burner Box ,plastic				$ 12.71
16	387559400		Box,burner ,outer		Appelez-nous	-
17	387174602		Bracket,spring ,cooktop Mtg.				$ 5.67
18	387627700		Bracket,retainer ,cooktop				$ 24.10
19	387683300		Bracket,surface Element			Immediately	$ 13.42
20	387727700		Retainer,wiring		Appelez-nous	-
F10	305440415		Element,surface ,7`` ,bridge				$ 312.06
F11	387372700		Light Assembly,indicator ,hot Surface		Appelez-nous	-
F8	140283001026		Element,surface ,6`` ,1200w   (Replaces: 374063522)			Immediately	$ 73.17
F9	305440406		Element,surface ,6/9`` ,1200/2700w ,dual				$ 197.99
FNI	387684900		Harness,wiring ,main		Appelez-nous	-
FNI	318078564		Box & Wires Assy				$ 207.32
NI	5303323140		Screw,ground   (Replaces: 305452800)		Appelez-nous	-
NI	305351200		Rivet,3 ,2 X 6		Appelez-nous	-
NI	131202300		Screw   (Replaces: 305376102)			Immediately	$ 13.46
NI	305309606		Screw				$ 11.34
NI	305376101		Screw,bracket ,surface Element		Appelez-nous	-
