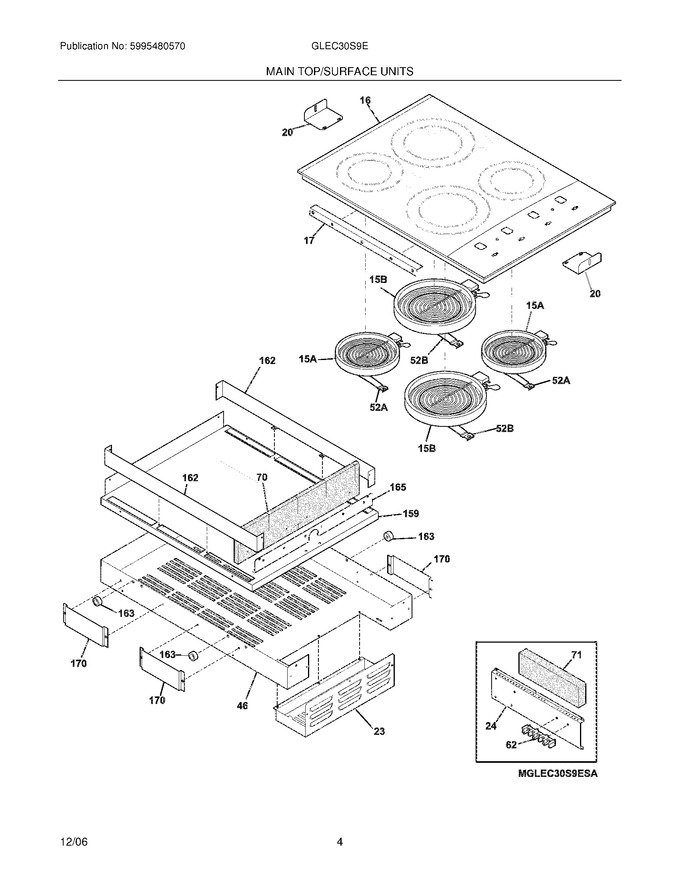

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318323302		Maintop Assembly,black ,w/trim		Appelez-nous	-
17	318340401		Bracket,holder		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	318194713		Panel,service ,black		Appelez-nous	-
24	318319202		Deflector,service Panel		Appelez-nous	-
46	318077253		Burner Box		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
70	318366901		Insulation,control Box		Appelez-nous	-
71	318366903		Insulation,2 X 7 X 1/2		Appelez-nous	-
159	318125131		Deflector		Appelez-nous	-
162	318161404		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
165	318161418		Deflector		Appelez-nous	-
170	318124911		Screen,thermal		Appelez-nous	-
52A	318122010		Spring,element Mtg ,3000w				$ 62.51
52B	318122008		Spring,element Mtg ,1800w/3000w				$ 90.80
F15A	318198952		Element,surface ,750/1800w ,dual Radiant   (Replaces: 318198936)			Immediately	$ 250.90
F15B	316555800		Element,surface ,6/9 ,1200/2500w ,dual Radiant   (Replaces: 318198932)			Immediately	$ 152.78
NI	318199471		Harness,wiring ,main		Appelez-nous	-
NI	318052533		Ground Wire,w/terminal		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078550		Box & Wires Assy				$ 125.53
