Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3185562 Liner, Oven Appelez-nous -
2 661415 Element, Broil Appelez-nous -
3 4396923 Grill, Broiler   (Replaces: 3147563) In-Stock Immediately $ 52.04

4 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

5 3185307 Rack, Offset Appelez-nous -
6 3185368 Rack, Oven Appelez-nous -
7 WP661416 Element, Bake   (Replaces: 661416) Special Order $ 131.33

8 3180694 Bracket, Element Appelez-nous -
9 3185648 Screw Appelez-nous -
9 3148440 Sensor, Heat Appelez-nous -
10 3149653 Spst Thermostat Special Order $ 134.40


    View Diagram in Separate Window     Print Icon   Print Part List

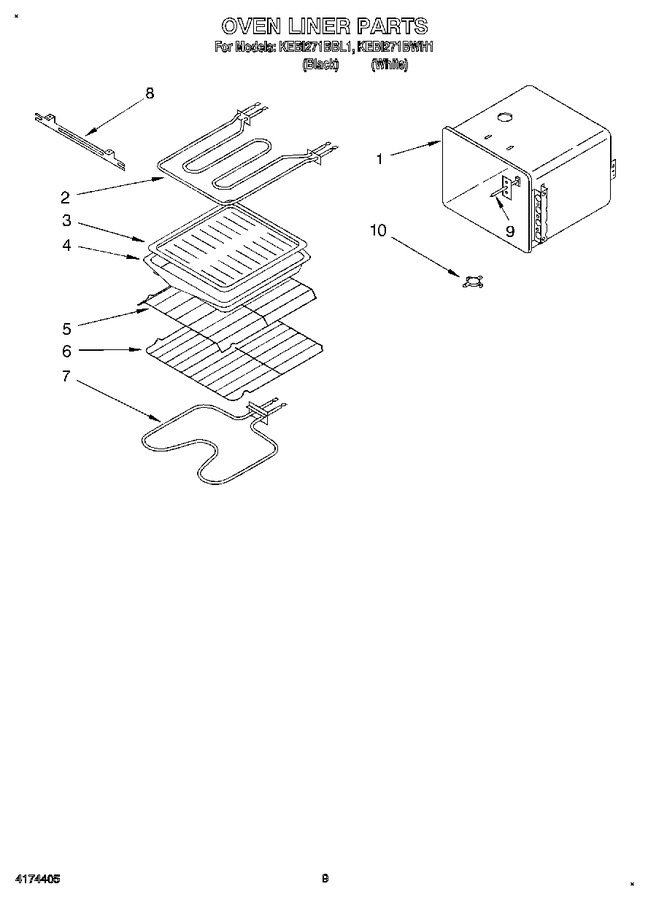

Diagram for KEBI271BWH1
