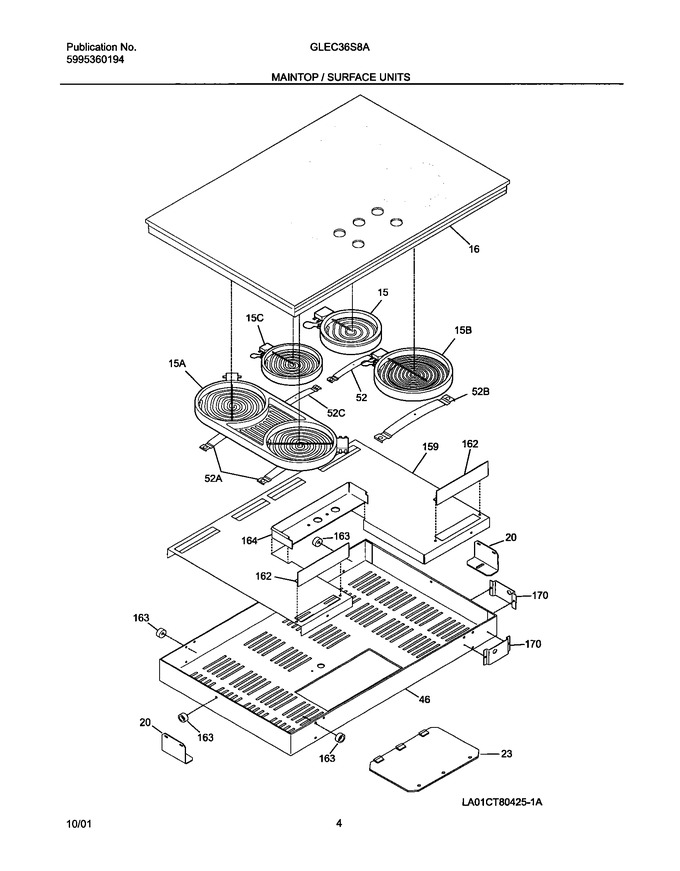

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079355		Main Top,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	5303297401		Panel,service		Appelez-nous	-
46	318077227		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
159	318125122		Deflector		Appelez-nous	-
162	318125210		Deflector		Appelez-nous	-
163	08007817		Spacer,(6)		Appelez-nous	-
164	318125302		Plate,connection		Appelez-nous	-
170	318124910		Screen,thermal		Appelez-nous	-
52A	318122008		Spring-element Mtg				$ 90.80
52B	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52C	318122004		Spring-element Mtg,700w & 2100w				$ 55.76
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318258201		Element,bridge   (Replaces: 318177900)			Immediately	$ 480.54
F15B	316555800		Element,dual ,9``/6`` ,surface ,2100w/700w,radiant   (Replaces: 316224300)			Immediately	$ 138.90
F15C	316098202		Element,warmer Zone ,100w				$ 473.08
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	318078514		Box & Wires Assy		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 0.500 ,chrome				$ 15.17
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
