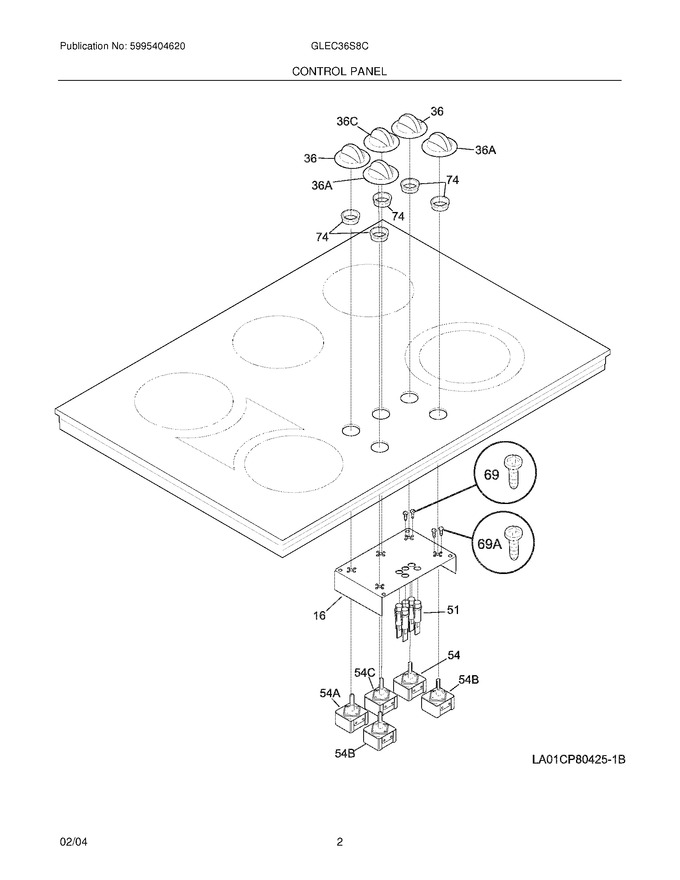

03 - Control Panel
05 - Maintop
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318096320 | Box, Instrument Mtg |
|
- | |||||
| 36 | 318196633 | Knob,control ,white |
|
$ 62.95 | |||||
| 69 | 5303288565 | Screw,switch Mtg. ,8-32 X 0.188 (Replaces: 5303323134) |
|
$ 3.12 | |||||
| 74 | 318148900 | Bushing,switch |
|
$ 54.92 | |||||
| 36A | 318196630 | Knob,dual Control ,white |
|
$ 58.28 | |||||
| 36C | 318196636 | Knob,warmer ,white |
|
$ 46.57 | |||||
| 69A | 5303323137 | Screw,8-32 X 1/4 (Replaces: 5303305528) |
|
$ 11.88 | |||||
| F51 | 318044820 | Light,indicator ,red |
|
- | |||||
| F54 | 318293824 | Switch,surface Unit ,small (Replaces: 318220071) |
|
Immediately | $ 97.07 | ||||
| F54A | 318293826 | Switch,surface Unit ,large (Replaces: 318220073) |
|
$ 89.99 | |||||
| F54B | 318191000 | Switch,infinite ,dual |
|
Immediately | $ 102.48 | ||||
| F54C | 318078801 | Switch,element ,6`` ,warmer |
|
$ 174.30 | |||||
| NI | 5303300265 | Screw,8-18 X 0.500 ,chrome ,(3) |
|
$ 15.17 | |||||
| NI | 5303323140 | Screw,ground ,10-32 X 0.375 |
|
- |
