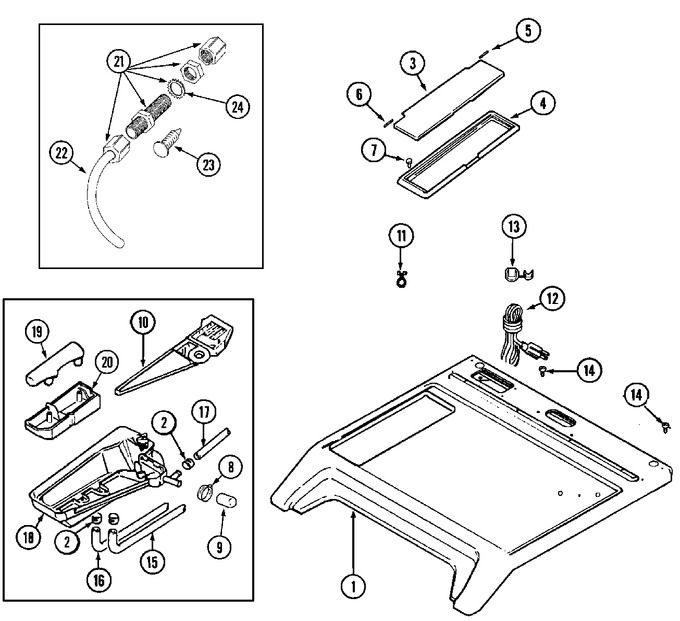

02 - Top (mah20prdww)


03 - Door & Front Panel


04 - Door Shroud & Door Latch Assembly


05 - Cabinet-front


06 - Cabinet-rear


07 - Outer Tub


08 - Spinner Assembly & Outer Tub Cover


09 - Base


10 - Wiring Information


11 - Motor & Motor Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22002116		Cover, Top (wht)	10	Appelez-nous	-
001	22003584		Cover, Top (wht-as Pk)	67	Appelez-nous	-
002	WP489503		Clamp, Hose   (Replaces: 205161)	10		Immediately	$ 9.68
003	WP22002941		Lid, Dispenser   (Replaces: 22002941)	10			$ 47.25
004	WP22003665		Bezel, Dispenser   (Replaces: 22002940)	10			$ 70.45
005	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
006	Y912679		Pin, Hinge (short)	10			$ 3.98
007	W11772394		Screw, Dispenser Bezel   (Replaces: 22002060)	10		Immediately	$ 10.94
008	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
009	22002796		Cap	10	Appelez-nous	-
010	22002555		Flume, Dispenser	10	Appelez-nous	-
011	WP90767		Screw, Wire Tie   (Replaces: 212276)	10		Immediately	$ 7.04
011	WP74007164		Wire Tie, Twist Lock   (Replaces: 22002027)	10			$ 6.85
012	22001178		Cord, Power	10	Appelez-nous	-
013	211881		Grommet, Cord	10	Appelez-nous	-
014	WP489128		Screw, Power Cord & Ground   (Replaces: 912365)	10			$ 9.79
015	22002551		Hose, Bleach	10	Appelez-nous	-
016	22002552		Hose, Fabric Softener----na	10	Appelez-nous	-
017	22002553		Hose, Detergent	10	Appelez-nous	-
018	NLA		Bottom, Dispenser (pay Inject)	10	Appelez-nous	-
019	22002266		Cap, Siphon	10			$ 37.23
020	22002265		Cup, Siphon	10			$ 25.22
021	NLA		Fitting, Compression	10	Appelez-nous	-
022	NLA		Hose, Pay Injection	10	Appelez-nous	-
023	NLA		Plug	10	Appelez-nous	-
024	NLA		Lock Washer	10	Appelez-nous	-
