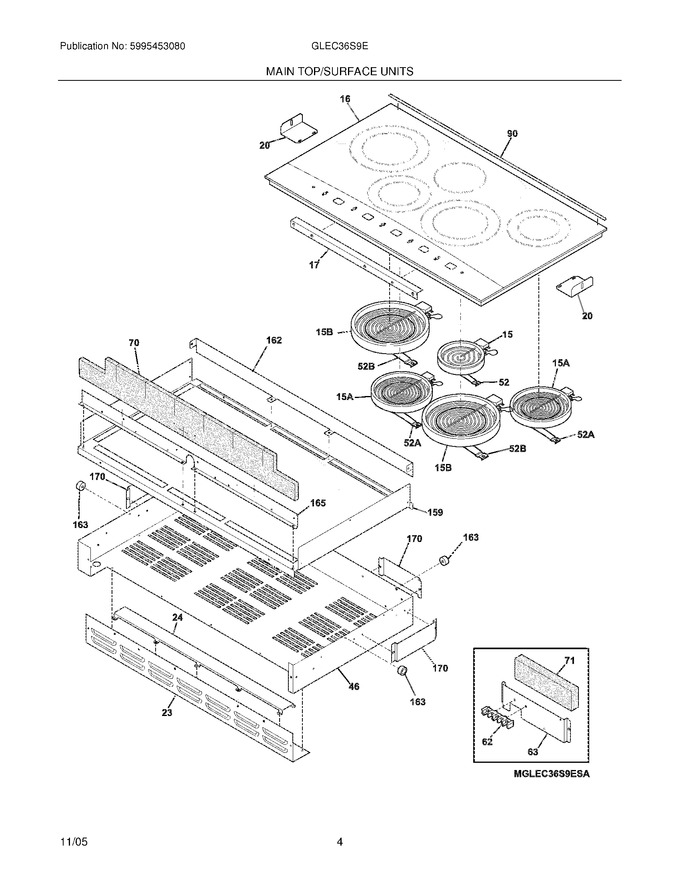

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318323326		Maintop Assembly,bisque ,w/trim		Appelez-nous	-
17	318341001		Bracket,trim Holder ,black		Appelez-nous	-
20	318121902		Bracket,retainer				$ 47.03
23	318194711		Panel,service ,black		Appelez-nous	-
24	318319201		Deflector,service Panel		Appelez-nous	-
46	318077251		Burner Box		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
63	318310600		Bracket,terminal Block		Appelez-nous	-
70	318285092		Insualtion		Appelez-nous	-
71	318285093		Insualtion,2 X 7 X 1/2		Appelez-nous	-
90	318338401		Trim,bisque ,rear ,w/tape		Appelez-nous	-
159	318125159		Deflector		Appelez-nous	-
162	318161408		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
165	318161413		Deflector		Appelez-nous	-
170	318124911		Screen,thermal		Appelez-nous	-
52A	318122010		Spring,element Mtg ,1000w/2500w				$ 62.51
52B	318122008		Spring-element Mtg				$ 90.80
F15	318198817		Element,surface ,6`` ,1200 W ,(2)			Immediately	$ 192.78
F15A	318198952		Element,surface ,dual ,750w/1800w ,(2)   (Replaces: 316419901)			Immediately	$ 250.90
F15B	318198925		Element,surface ,6/9 ,1200/2500w ,			Immediately	$ 283.81
NI	318052533		Ground Wire,w/terminal		Appelez-nous	-
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	318078553		Box & Wires Assy		Appelez-nous	-
NI	318199424		Harness,wiring ,main		Appelez-nous	-
NI	318083031		Harness,wiring ,limiter		Appelez-nous	-
