SELECT A DIAGRAM

01 - Control Panel (pd/ps)


02 - Cabinet-front


03 - Cabinet-rear


04 - Outer Tub


05 - Spinner Assembly & Outer Tub Cover


06 - Base


07 - Door & Front Panel


08 - Door Shroud & Door Latch Assembly

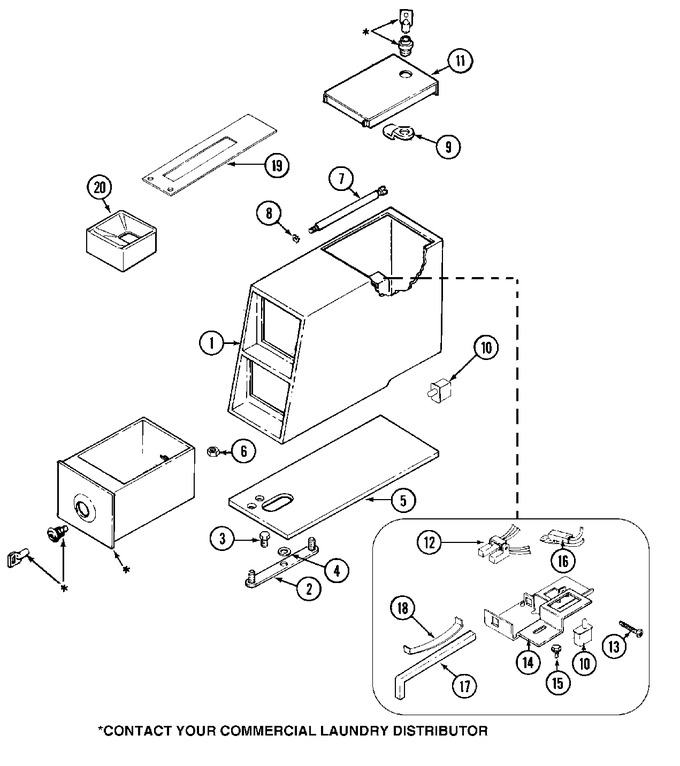

09 - Control Center (ps)


10 - Wiring Information


11 - Motor & Motor Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP22002478		Vault, Coin (wht)   (Replaces: 22002478)	42			$ 266.69
001	22003815		Dual Faceplate	10	Appelez-nous	-
002	22001810		Strap, Mounting	42	Appelez-nous	-
003	WP489128		Screw, Mounting Strap   (Replaces: 22001996)	42			$ 9.79
004	910309		Washer, Mounting Strap	42	Appelez-nous	-
005	22002072		Gasket, Control Center (wht)	42	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	42			$ 6.85
007	WP8576635		Locking Bolt, Coin Slide   (Replaces: 22001903)	42		Immediately	$ 67.13
008	211605		Clip, Lockwasher	42	Appelez-nous	-
008	910387		Lockwasher, Locking Bolt	42	Appelez-nous	-
009	NLA		Cam, Locking	42	Appelez-nous	-
010	WPW10131838		Switch, Sensor   (Replaces: 33001250)	42			$ 21.52
010	912012		Screw, Sensor Switch	42	Appelez-nous	-
011	22001910		Door, Access (wht)	42	Appelez-nous	-
012	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	42		Immediately	$ 104.31
013	WP3395530		Screw, Optic Switch   (Replaces: 314665)	42			$ 6.93
014	33001253		Bracket, Sensor Switch	42	Appelez-nous	-
015	211605		Clip, Bracket Screw	42	Appelez-nous	-
015	WP90767		Screw, Switch Bracket   (Replaces: 212276)	42		Immediately	$ 7.04
016	22001966		Harness, Sensor Switch	42	Appelez-nous	-
017	216442		Rod, Actuator	42			$ 44.45
018	33001252		Spring, Switch	42	Appelez-nous	-
019	22001812		Actuator Kit	42	Appelez-nous	-
020	22002533		Weld Assy., Funnel	42	Appelez-nous	-
020	22002534		Bolt, Carriage	42	Appelez-nous	-
020	Y052721		Nut	42			$ 21.38

    View Diagram in Separate Window       Print Part List
