MAH21PDAGW | TransGlobal : Appliance Model Lookup

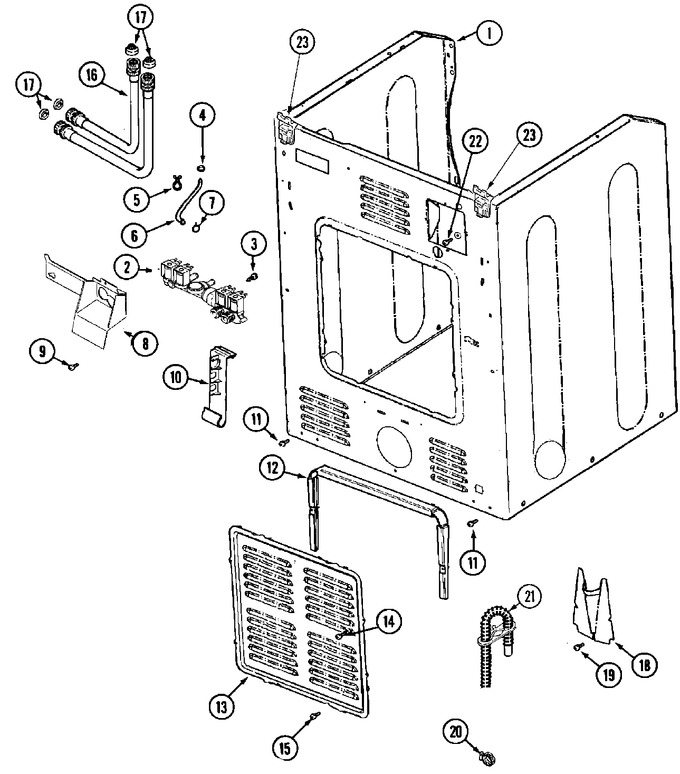

Diagram #	Part Number	Description	Series	Availability	Ships	Price
001	22002013	Stop, Shipping	10			$ 5.43
001	22003639	Cabinet Assy. (wht As Pk)	10	Appelez-nous	-
002	WP22002903	Valve, Water (Replaces: 22002903)	10			$ 216.02
003	Y313561	Screw, Water Valve	10			$ 5.27
004	WP616099	Clamp, Stepless (Replaces: 22003627)	10		Immediately	$ 7.03
005	22003707	Cable, Tie	10	Appelez-nous	-
006	WP22002083	Hose, Injector (Replaces: 22002083)	10			$ 124.55
007	WP596669	Clamp, Injector Hose (Replaces: 216169)	10		Immediately	$ 7.56
008	33002212	Bracket, Water Valve	10	Appelez-nous	-
009	22002436	Screw, Water Valve Bracket	10	Appelez-nous	-
010	33002213	Rack, Hose	10	Appelez-nous	-
011	W11573574	Screw, Cabinet (Replaces: 22001995)	10		Immediately	$ 12.62
012	22002022	Spacer, Access Panel	10	Appelez-nous	-
013	22002092	Panel, Access	10	Appelez-nous	-
013	WPW10133264	Lock, Access Door (Replaces: 22002349)	10			$ 125.12
014	WP67006908	Screw, Access Panel Spacer (Replaces: 22002295)	10		Immediately	$ 7.16
015	WP489128	Screw, Access Panel (Replaces: 22001996)	10			$ 9.79
016	35-3400	Hose, Inlet (cold)	10	Appelez-nous	-
016	35-3401	Hose, Inlet (hot)	10	Appelez-nous	-
017	12001413	Strainer & Washer Kit	10			$ 2.75
018	22002704	Cover, Drain Hose	10	Appelez-nous	-
019	W11573574	Screw, Drain Hose Cover (Replaces: 22001995)	10		Immediately	$ 12.62
020	WP285655	Clamp, Drain Hose (Replaces: 22001984)	10		Immediately	$ 7.55
021	12001807	Drain Hose Kit (corrugated) (includes The Following Parts) (Replaces: 12001659)	10			$ 49.51
021	WP22002892	Retainer, Drain Hose (Replaces: 22002892)	10			$ 76.85
021	22002893	Tie, Cable	10	Appelez-nous	-
021	22002932	Clip, Drain Hose	10	Appelez-nous	-
021	12001807	Hose, Drain (corr)(80 1/2``) (Replaces: 22003319)	10			$ 49.51
022	NLA	Screw, Ground Lug	10	Appelez-nous	-
