SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Top


04 - Door, Front Panel & Shroud


05 - Cabinet-front


06 - Cabinet-rear


07 - Outer Tub & Motor


08 - Spinner Assembly & Outer Tub Cover


09 - Base & Motor Control


10 - Wiring Information


11 - Wiring Information Ser-15

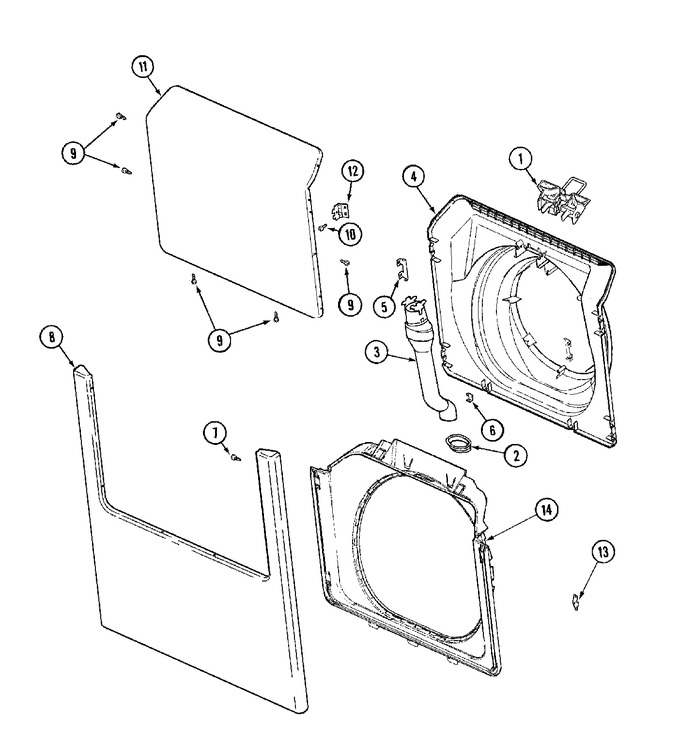

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP22003269		Door, Lock Hoop Assembly   (Replaces: 22003269)	10			$ 49.33
002	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	10			$ 50.41
003	22003850		Vent Tube Assembly	10			$ 45.03
004	WP22003275		Door, Inner (wht)   (Replaces: 22003275)	10		Immediately	$ 165.54
005	22002038		Clip, Door (double)	10	Appelez-nous	-
006	22002039		Clip, Door (single)	10			$ 8.15
007	22002243		Screw, Front Panel & Hinge	10	Appelez-nous	-
007	22002244		Clip, Grounding	10	Appelez-nous	-
008	22002049		Clip (panel/cabinet)	10			$ 8.40
008	22002836		Panel, Front (wht)	10			$ 448.33
009	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
010	WP98006631		Screw, Hinge   (Replaces: 22002062)	10			$ 6.26
012	WP22002798		Hinge, Door   (Replaces: 22002798)	10			$ 77.72
013	33001764		Cover, Hinge Hole (wht)	10			$ 36.41
013	WP33001787		Screw   (Replaces: 33001846)	10			$ 10.45
014	22003516		Shroud (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
