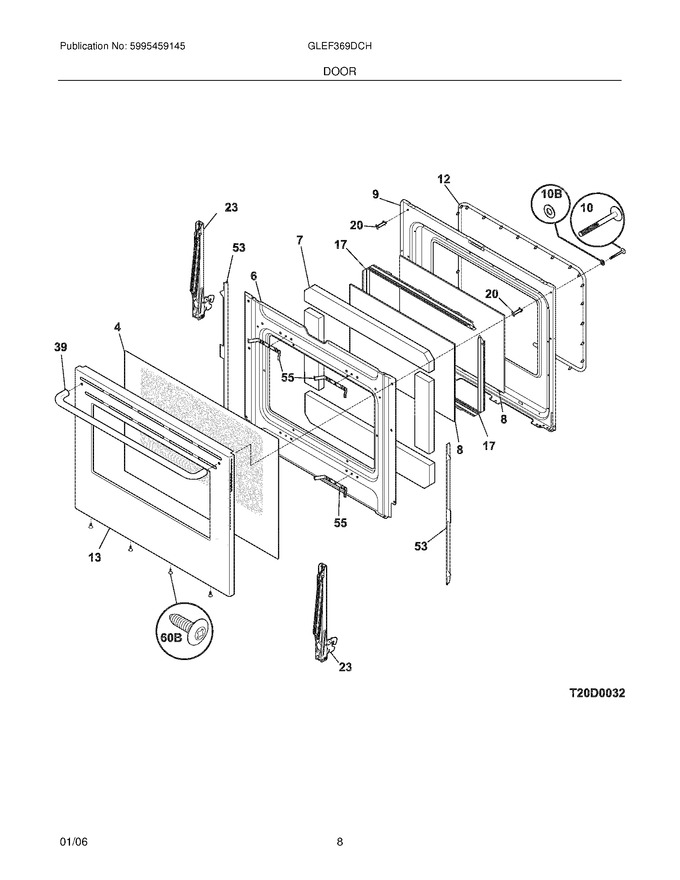

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452700		Glass,oven Door ,black ,outer				$ 100.91
6	316406328		Shield,wool   (Replaces: 316406307)				$ 87.21
7	316405600		Insulation,oven Door				$ 76.55
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423701		Liner,oven Door				$ 143.50
10	316001006		Screw-handle Mtg,no.10-32		Appelez-nous	-
12	316405000		Seal,oven Door			Immediately	$ 179.17
13	5304523142		Panel,oven Door ,stainless ,outer   (Replaces: 316407906)				$ 279.25
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
20	316408600		Spacer,door Handle ,(2)				$ 16.45
23	316437704		Hinge,oven Door				$ 89.59
39	316079500		Handle-door/drawer, Stainless				$ 289.70
53	5304532042		Shield,door Filler ,black ,(2)   (Replaces: 316408201)				$ 25.79
55	316408300		Bracket,glass Support ,(4)				$ 21.23
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316279700		Cleaner,stainless Steel		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
