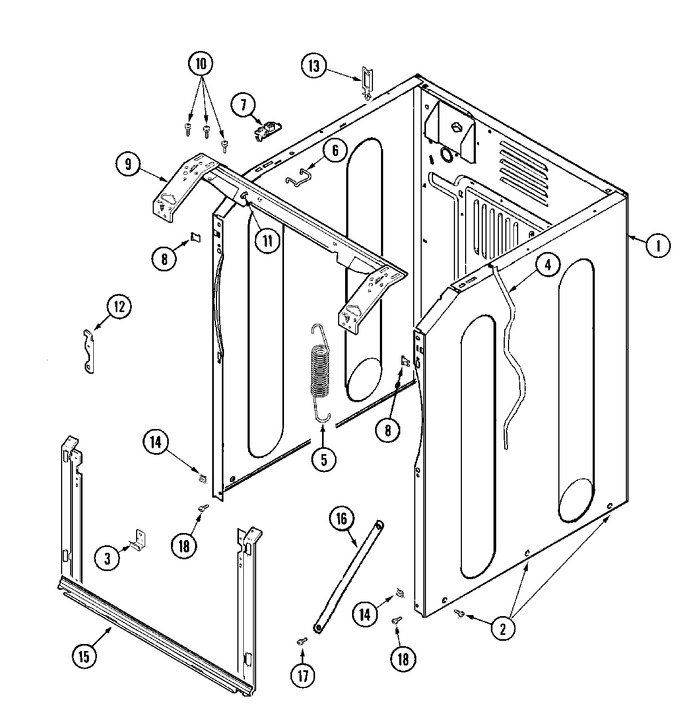

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	22003639		Cabinet Assy. (wht As Pk)	10	Appelez-nous	-
002	213007		Screw, Cabinet (truss)   (Replaces: 22003409)	67			$ 10.99
003	22002239		Clip, Lower Front Panel	10			$ 5.84
004	33001836		Strap, Top Cover Support	10	Appelez-nous	-
005	WP22003254		Spring, Cabinet To Tub   (Replaces: 22003254)	10			$ 7.16
006	22002297		Support, Spring	10			$ 5.84
007	22001997		Spacer, Top Cover	10	Appelez-nous	-
008	22002049		Clip, Front Panel	10			$ 8.40
009	22003637		Brace Assembly, Top Cross	10	Appelez-nous	-
010	W11573574		Screw, Shroud Support-cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
011	WP308605		Clip   (Replaces: 22002014)	10			$ 10.08
012	22002247		Hook, Security	10	Appelez-nous	-
013	22003298		Retainer, Wire	10			$ 7.71
014	22002013		Stop, Shipping	10			$ 5.43
015	22003638		Shroud Support Assembly	10	Appelez-nous	-
016	22002259		Brace, Cross	10	Appelez-nous	-
017	W11573574		Screw, Cross Brace   (Replaces: 22001995)	10		Immediately	$ 12.62
018	W11573574		Screw, Front Cabinet   (Replaces: 22001995)	10		Immediately	$ 12.62
