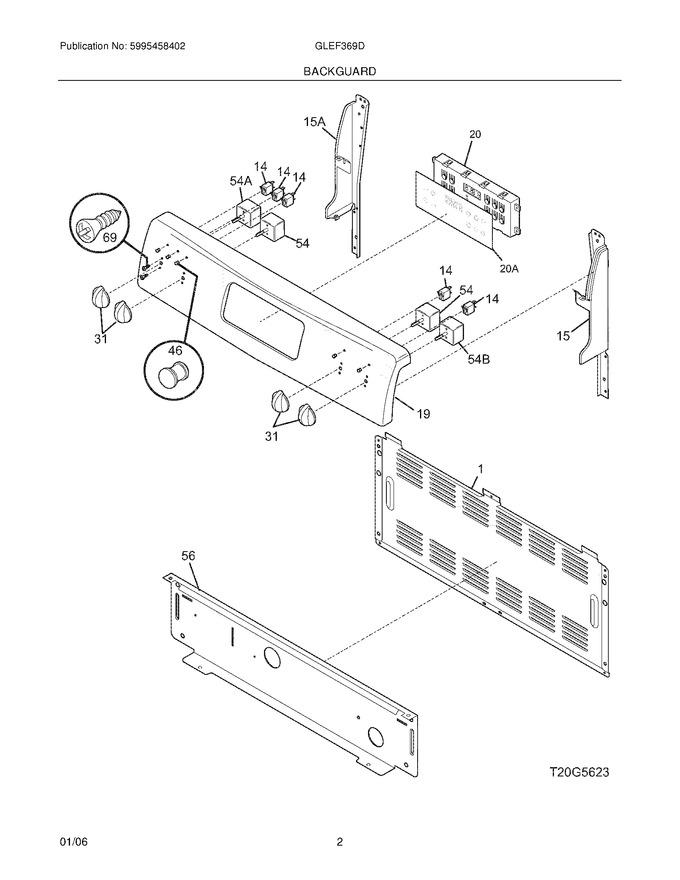

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316424135		Panel,control ,bisque		Appelez-nous	-
31	316223003		Knob,control ,bisque				$ 48.20
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234014		Shield,backguard ,bisque ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316419302		Overlay,clock ,bisque ,es330		Appelez-nous	-
F20	316418300		Clock/timer,electronic ,es330		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
F54B	316238201		Switch,infinite ,dual Element   (Replaces: 316238200)			Immediately	$ 89.00
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
