SELECT A DIAGRAM

01 - Control Panel


02 - Top


03 - Cabinet-front


04 - Cabinet-rear


05 - Outer Tub


06 - Base

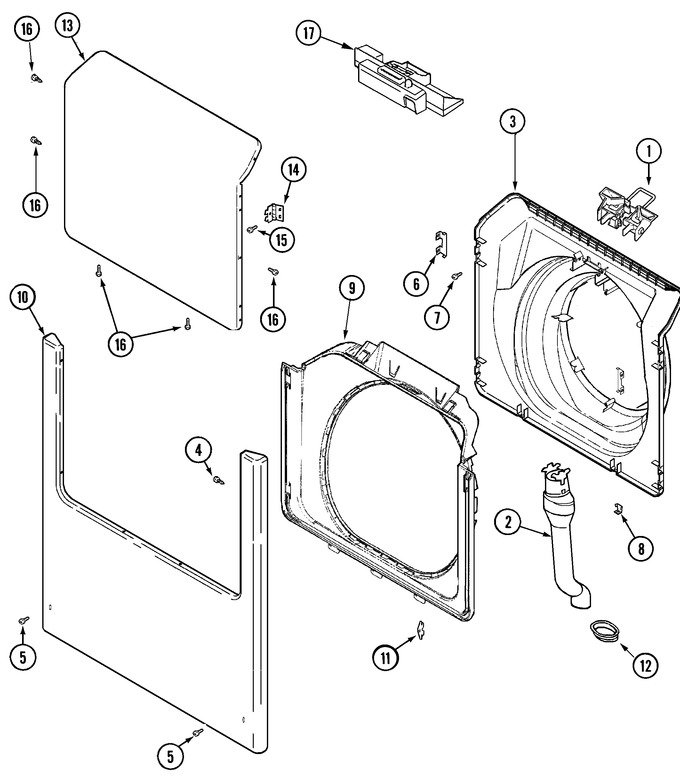

07 - Door, Shroud, Front Panel & Latch Assy


08 - Spinner Assembly & Outer Tub Cover


09 - Wiring Information


10 - Motor & Motor Control


11 - Wiring Information(ser 31)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP22003269		Door, Lock Hoop Assembly   (Replaces: 22003269)	10			$ 49.33
002	22003576		Vent Tube Assy.	10	Appelez-nous	-
003	WP22003275		Door, Inner (wht)   (Replaces: 22003275)	10		Immediately	$ 165.54
004	22002244		Clip, Grounding	10	Appelez-nous	-
005	33002190		Screw (no.10-3/8``)	10	Appelez-nous	-
006	22002038		Clip, Door (double)	10	Appelez-nous	-
007	22002007		Screw	10	Appelez-nous	-
008	22002039		Clip, Door (single)	10			$ 8.15
009	22003516		Shroud (wht)	10	Appelez-nous	-
010	22002836		Panel, Front (wht)	10			$ 448.33
011	22002095		Cover, Hinge (wht)	10	Appelez-nous	-
011	33001764		Cover, Hinge Hole (wht)	75			$ 36.41
011	WP33001787		Screw   (Replaces: 33001846)	75			$ 10.45
012	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	10			$ 50.41
013	22003785		Door, Outer (wht)	10			$ 99.17
014	WP22002798		Hinge, Door   (Replaces: 22002798)	10			$ 77.72
015	WP98006631		Screw, Hinge   (Replaces: 22002062)	10			$ 6.26
016	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
017	WP22003706		Door Lock Assembly, Commercial   (Replaces: 22003706)	10			$ 142.50
