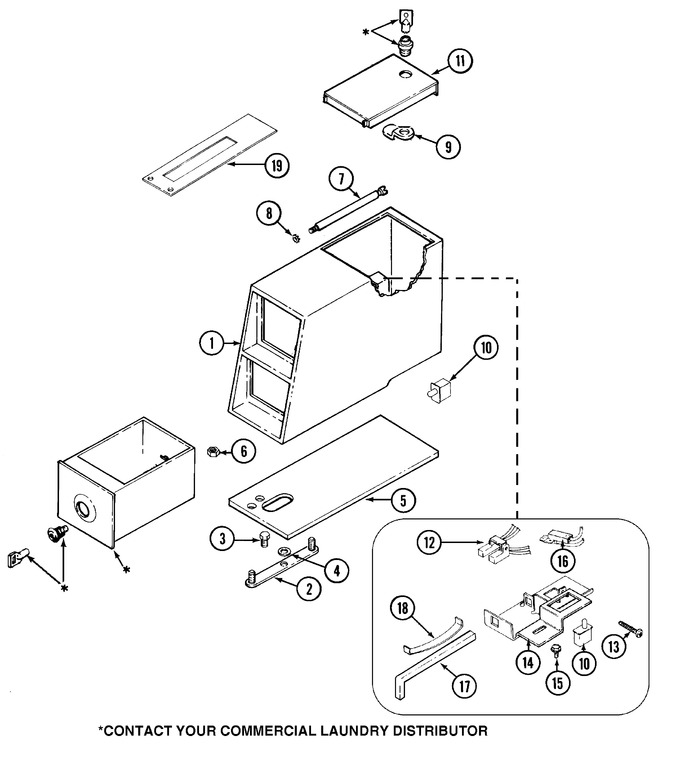

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP22002478		Vault, Coin (wht)cs   (Replaces: 22002478)	10			$ 266.69
002	22001810		Strap, Mounting	10	Appelez-nous	-
003	WP489128		Screw, Mounting Strap   (Replaces: 22001996)	10			$ 9.79
004	910309		Washer, Strap Screw	10	Appelez-nous	-
005	22002072		Gasket, Control Center (wht)	10	Appelez-nous	-
006	WP62739		Nut, Case Mounting   (Replaces: Y052740)	10			$ 6.85
007	WP8576635		Bolt, Locking   (Replaces: 22001903)	10		Immediately	$ 67.13
008	910181		Lock Washer	10	Appelez-nous	-
009	22003677		Locking Cam	10			$ 5.71
010	WPW10131838		Switch, Sensor   (Replaces: 33001250)	10			$ 21.52
011	22003679		Timer Access Door Assy (white)	10			$ 70.41
012	WPW10247389		Switch Assy., Optic   (Replaces: 22001965)	10		Immediately	$ 104.31
013	WP3395530		Screw   (Replaces: 314665)	10			$ 6.93
014	33001253		Bracket, Sensor Switch	10	Appelez-nous	-
015	WP90767		Screw   (Replaces: 212276)	10		Immediately	$ 7.04
016	22001966		Harness, Sensor Switch	10	Appelez-nous	-
017	216442		Rod, Actuator	10			$ 44.45
018	33001252		Spring, Switch	10	Appelez-nous	-
019	22003416		Actuator Kit (ps)	10	Appelez-nous	-
