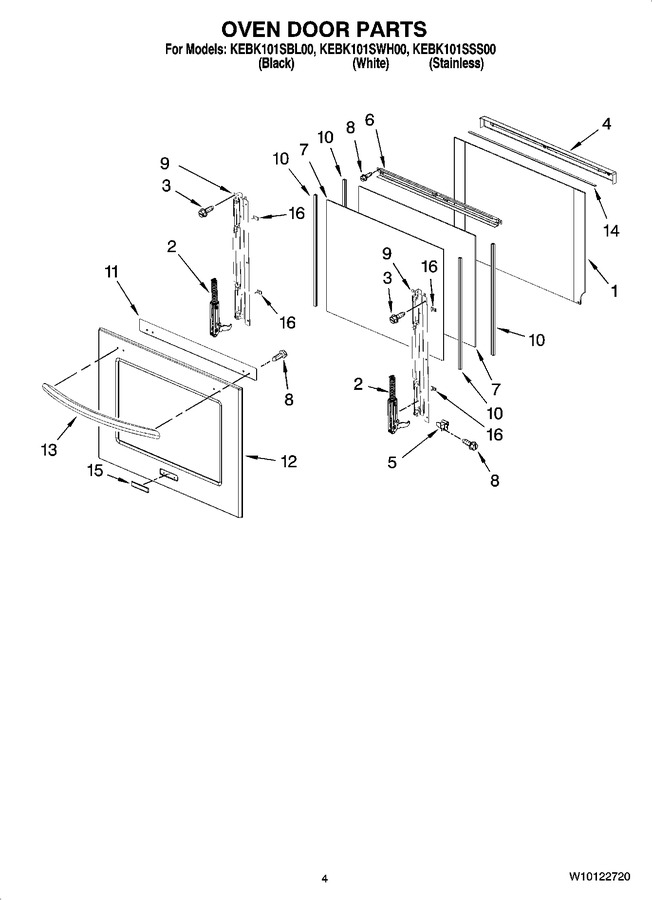

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303737BL		Door Liner		Appelez-nous	-
2	8303989		Hinge, Door (2)		Appelez-nous	-
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304581BL		Vent, Door Top				$ 72.64
5	8304378		Bracket, Door (left)				$ 83.98
5	8304377		Bracket, Door (right)				$ 40.81
6	8303746		Door, Top Bracket				$ 91.01
7	8303731		Glass, Inner				$ 98.49
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	8303745BL		Frame, Door Side				$ 70.23
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304360BL		Bracket, Handle				$ 53.71
12	8303995		Door Glass, Assembly (white)		Appelez-nous	-
12	8303991		Door Glass, Assembly (stainless)				$ 316.41
12	8303993		Door Glass, Assembly (black)		Appelez-nous	-
13	8303774WH		Door Handle (white)		Appelez-nous	-
13	8303774SS		Door Handle (stainless)		Appelez-nous	-
13	8303774BL		Door Handle (black)		Appelez-nous	-
14	8304524		Seal		Appelez-nous	-
15	8304603BL		Badge (black)				$ 51.41
15	8304603WH		Badge (white)				$ 51.41
15	8304603SS		Badge (stainless)				$ 51.11
16	8304522		Bumper, Glass				$ 31.91
