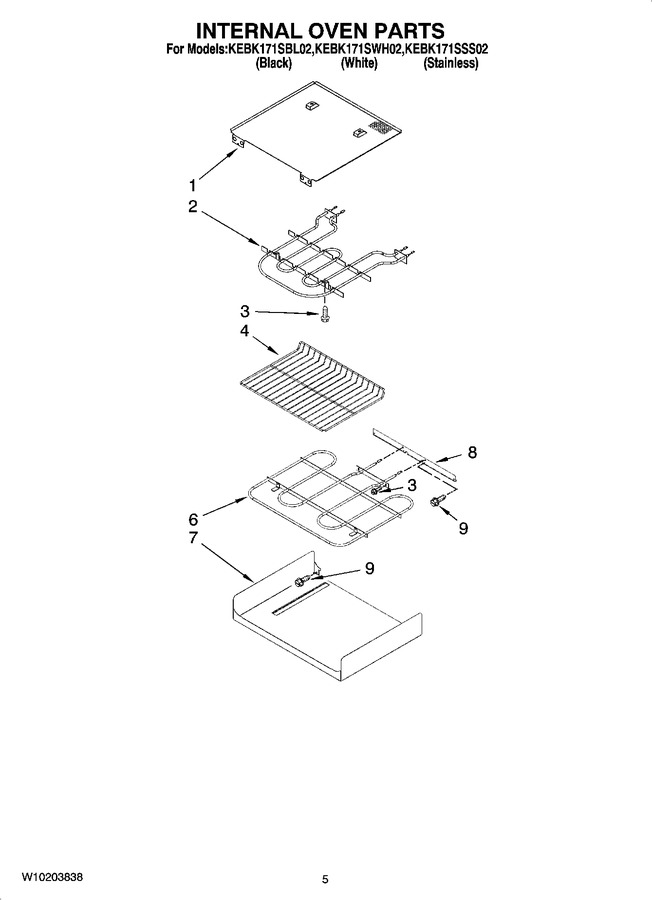

04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304602 | Element, Broil Shield |
|
$ 44.42 | |||||
| 2 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 206.10 | ||||
| 3 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 4 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 6 | WPW10207398 | Element, Bake (Replaces: 9760768) |
|
Immediately | $ 119.70 | ||||
| 7 | 4455036 | Tray, Bake |
|
$ 76.60 | |||||
| 8 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 9 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
