SELECT A DIAGRAM

01 - Cabinet

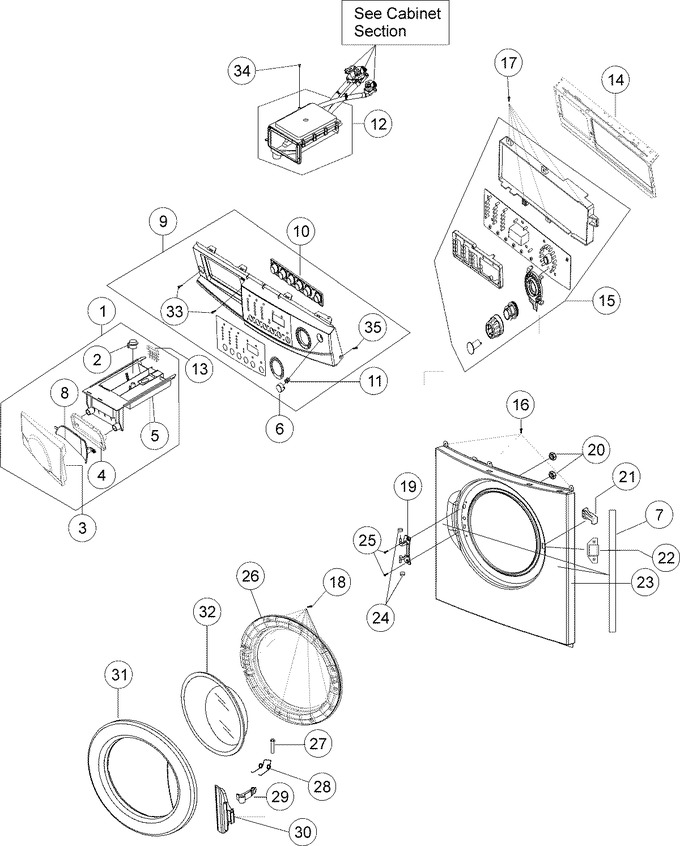

02 - Control Panel - Front


03 - Supplemental Information


04 - Tub


05 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34001489		Assy-pcb Part	10	Appelez-nous	-
2	34001087		Cap-rinse	10			$ 6.33
3	34001344		Panel-drawer	10	Appelez-nous	-
4	34001345		Handle-drawer	10			$ 9.27
5	34001103		Body-drawer	10	Appelez-nous	-
6	35001053		Button-push (p)	10	Appelez-nous	-
7	34001375		Sponge-epdm	10	Appelez-nous	-
8	34001374		Cover-panel	10	Appelez-nous	-
9	34001347		Assy-panel Control	10	Appelez-nous	-
9	12002618		Control Board Assy (24``int)	10	Appelez-nous	-
10	35001069		Button-push (f)	10			$ 19.43
11	35001068		Spring Etc-button	10	Appelez-nous	-
12	34001102		Assy-housing Drawer	10			$ 67.63
13	34001317		Screw-special	10	Appelez-nous	-
14	34001100		Assy-frame Plate	10	Appelez-nous	-
15	34001368		Assy-pcb Parts	10	Appelez-nous	-
15	34001489		Assy-pcb Part	11	Appelez-nous	-
16	35001166		Screw-tapping	10	Appelez-nous	-
17	6002-000213		Screw-tapping	10		Immediately	$ 0.93
18	6002-001006		Screw-tapping;th,+,2s,m4,l12,-	10			$ 0.85
19	34001215		Hinge-door	10			$ 200.79
20	34001144		Nut-flange	10	Appelez-nous	-
21	34001474		Door Switch	10	Appelez-nous	-
22	34001051		Cover-front (door)	10	Appelez-nous	-
23	34001145		Assy-frame Front Lu	10	Appelez-nous	-
24	WP34001192		Guide-hinge   (Replaces: 34001192)	10		Immediately	$ 6.47
25	6002-001006		Screw-tapping;th,+,2s,m4,l12,-	10			$ 0.85
26	34001179		Holder-glass	10			$ 89.42
27	34001194		Guide-bar	10			$ 5.70
28	34001195		Spring-handle	10			$ 5.70
29	34001111		Lever-door	10			$ 29.27
30	34001196		Handle-door	10			$ 5.84
31	WP34001178		Cover-door   (Replaces: 34001178)	10			$ 292.86
32	34001106		Door-glass	10	Appelez-nous	-
33	34001214		Screw-console To Front Frame	10	Appelez-nous	-
34	WP1163283		Screw-tapping   (Replaces: 6002-000473)	10			$ 6.47
35	34001213		Screw-painted, Side Panel	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
