SELECT A DIAGRAM

01 - Oven Parts


02 - Control Panel Parts

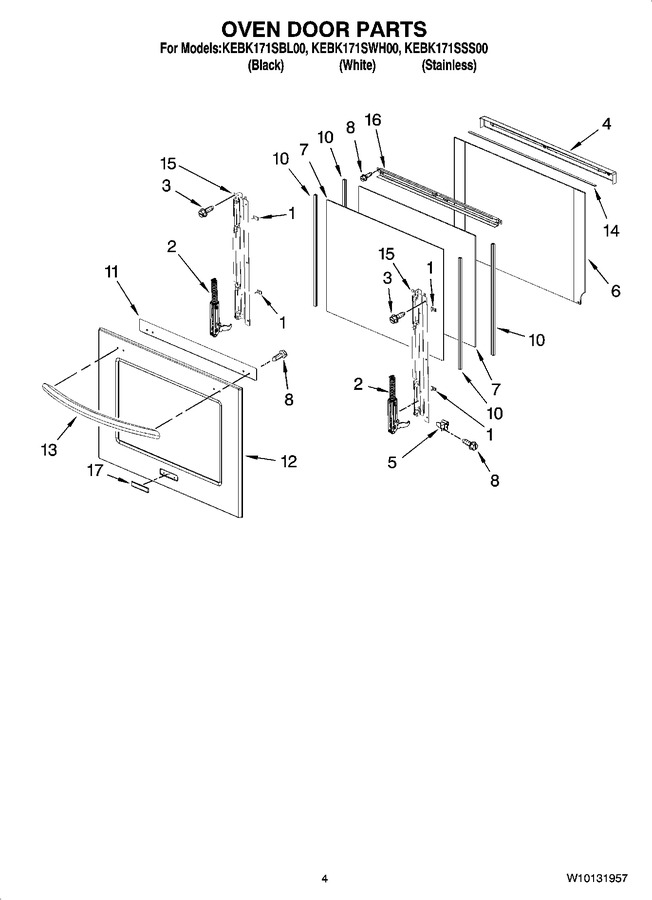

03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304522		Bumper, Door				$ 31.91
2	8303990		Hinge, Door (2)		Appelez-nous	-
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304580BL		Vent, Door Top				$ 81.93
5	8304377		Bracket, Door (right)				$ 40.81
5	8304378		Bracket, Door (left)				$ 83.98
6	8303738BL		Door Liner		Appelez-nous	-
7	8303732		Glass, Inner				$ 110.51
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304361BL		Bracket, Handle				$ 55.63
12	8304001		Door Glass, Assembly Includes 17 (black)		Appelez-nous	-
12	8304003		Door Glass, Assembly Includes 17 (white)				$ 269.57
12	8303999		Door Glass, Assembly Includes 17 (stainless)		Appelez-nous	-
13	8303775BL		Handle, Door (black)		Appelez-nous	-
13	8303775SS		Handle, Door (stainless)		Appelez-nous	-
13	8303775WH		Handle, Door (white)		Appelez-nous	-
14	W10754473		Seal   (Replaces: 8304525)				$ 23.03
15	8303745BL		Frame, Door Side (2)				$ 70.23
16	8303754		Door, Top Bracket				$ 53.80
17	8304603BL		Badge (black)				$ 51.41
17	8304603WH		Badge (white)				$ 51.41
17	8304603SS		Badge (stainless)				$ 51.11

    View Diagram in Separate Window       Print Part List
