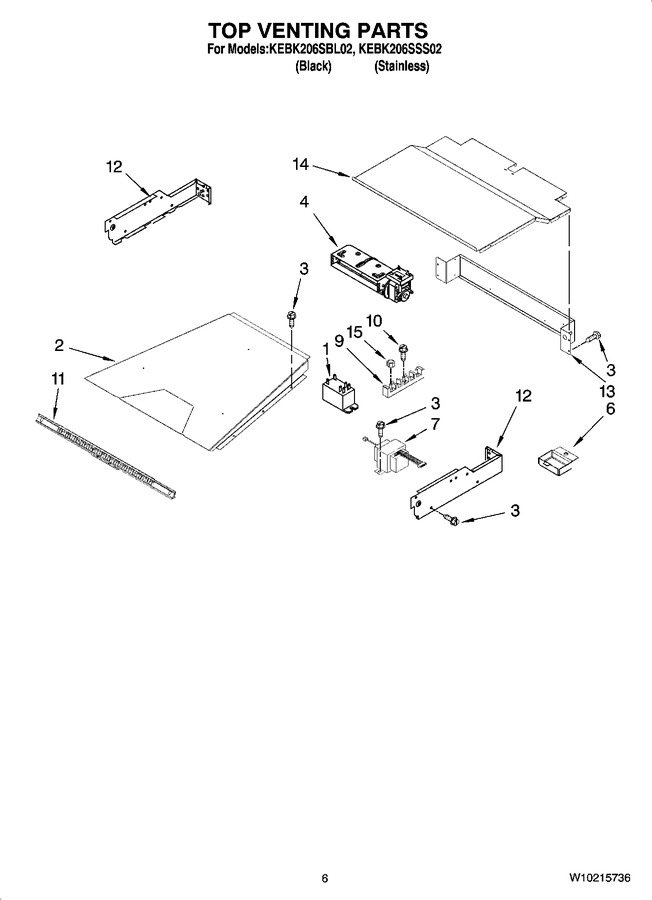

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9752759		Relay   (Replaces: 9752759)			Immediately	$ 172.43
2	8304643		Duct, Air Outlet				$ 51.64
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
4	WP8303972		Blower, 60mm   (Replaces: 8303972)			Immediately	$ 276.88
6	W11819303		Connector, Cover   (Replaces: 8285593)		Appelez-nous	-
7	WPW10111628		Transformer, Control   (Replaces: W10111628)				$ 254.91
9	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
10	W11684512		Screw   (Replaces: 3400080)				$ 12.69
11	8303684		Vent, Control Panel				$ 99.51
12	8303518		Side, Control Top (right)		Appelez-nous	-
12	8304255		Side, Control Top (left)				$ 36.20
13	8303520		Back, Control				$ 33.48
14	8304219		Cover, Top				$ 52.95
15	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 6.47
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4450800		Screw, Ground				$ 11.55
	WP98997		Clip   (Replaces: 98997)				$ 9.98
	W11209404		Connector, Flex   (Replaces: W10155291)				$ 102.00
	WP4448950		Screw, Install (4)   (Replaces: 4448950)				$ 6.80
	WP261869		Paint, Touch-up (1/2oz.) (cord Brown)   (Replaces: 261869)				$ 23.85
	350930		Paint, Spray (white)			Immediately	$ 34.39
	261900		Paint, Spray (citrine White)				$ 51.34
	285006		Paint, Spray (black)   (Replaces: 830864)			Immediately	$ 51.34
	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
	W10231531		Harness, Door Latch   (Replaces: W10143473)				$ 128.67
	WPW10171562		Harness, Main   (Replaces: W10171562)				$ 247.91

    View Diagram in Separate Window       Print Part List
