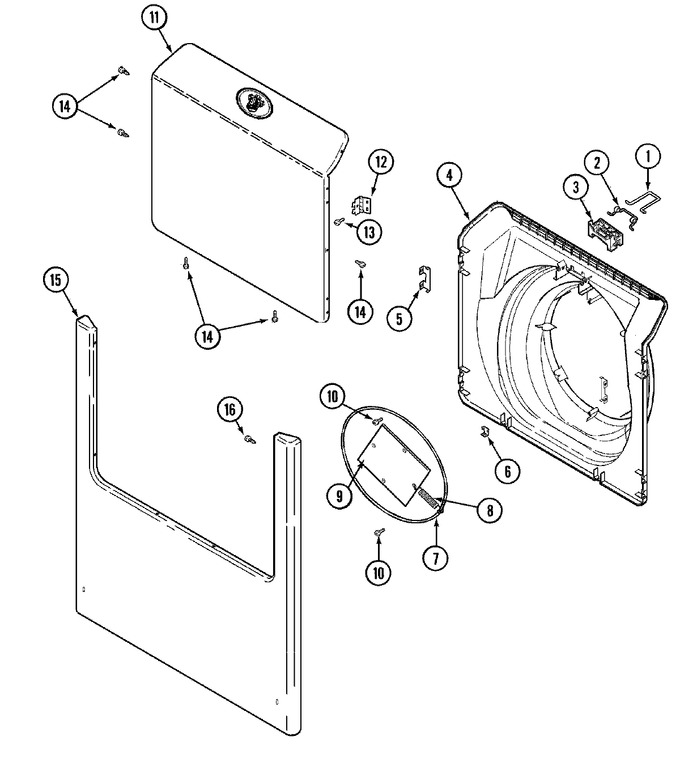

05 - Door & Front Panel (mah3000awq)


06 - Door Shroud & Door Latch Assembly


07 - Door Shroud & Latch Assy. (mah3000awq)


08 - Motor & Motor Control


09 - Outer Tub (mah3000awq)


10 - Spinner Assy/outer Tub Cover(mah3000awq)


11 - Top (mah3000awq)


12 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22002002		Hoop, Lock	10	Appelez-nous	-
2	22002003		Spring, Latch	10			$ 5.70
3	22002168		Support, Lock Hoop	10			$ 6.85
4	22002615		Door, Inner (w/vent-bsq)	10	Appelez-nous	-
5	22002038		Clip, Door (double)	10	Appelez-nous	-
6	22002039		Clip, Door (single)	10			$ 8.15
7	22002104		Wireframe	10	Appelez-nous	-
8	22002356		Spring, Plate	10	Appelez-nous	-
9	22002094		Plate	10	Appelez-nous	-
10	22002007		Screw	10	Appelez-nous	-
11	22002661		Panel, Door (bsq W/medallion)	10	Appelez-nous	-
11	22001817		Sheet, Sound Damper (ft. Pnl)	10			$ 22.19
12	WP22002798		Hinge, Door   (Replaces: 22002000)	10			$ 77.72
12	22002612		Cover, Hinge (bsq)	10	Appelez-nous	-
13	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
14	33002351		Screw (no.8-18 Outer Door (bsq)	10	Appelez-nous	-
15	22002239		Clip, Lower Front Panel	10			$ 5.84
15	22002663		Panel, Front (bsq)	10	Appelez-nous	-
15	22002305		Insulation, Front Panel	10	Appelez-nous	-
15	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
16	22002012		Screw, Hinge	10			$ 5.48
16	22002244		Clip, Grounding	10	Appelez-nous	-
