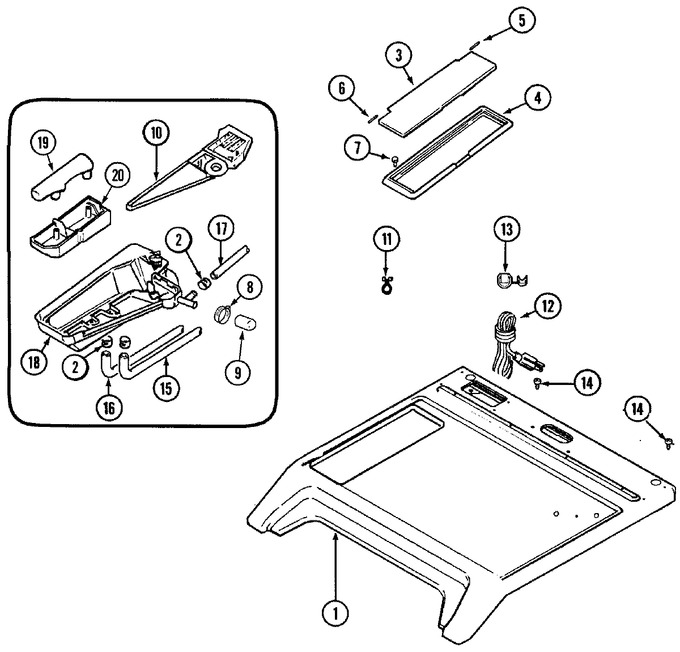

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003585		Cover, Top (bsq-as Pk)	67	Appelez-nous	-
1	22002662		Cover, Top (bsq)	10	Appelez-nous	-
2	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
3	22002614		Lid, Dispenser (bsq)	10			$ 20.72
4	22002613		Bezel, Dispenser (bsq)	10			$ 29.14
5	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
6	Y912679		Pin, Hinge (short)	10			$ 3.98
7	W11772394		Screw, Dispenser Lid   (Replaces: 22003681)	58		Immediately	$ 10.94
7	W11772394		Screw, Bezel   (Replaces: 22002060)	10		Immediately	$ 10.94
8	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
9	22002796		Cap	10	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	58	Appelez-nous	-
10	22002555		Flume, Dispenser	10	Appelez-nous	-
10	22003322		Top, Dispenser (flume)	58	Appelez-nous	-
11	WP90767		Screw   (Replaces: 212276)	10		Immediately	$ 7.04
11	WP74007164		Wire Tie, Twist Lock   (Replaces: 22002027)	10			$ 6.85
12	22001178		Cord, Power	10	Appelez-nous	-
13	211881		Grommet, Cord	10	Appelez-nous	-
14	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
15	22002551		Hose, Bleach	10	Appelez-nous	-
16	22002552		Hose, Fabric Softener----na	10	Appelez-nous	-
17	22002553		Hose, Detergent	10	Appelez-nous	-
17	22003457		Hose, Detergent	58			$ 5.02
18	22003723		Bottom, Dispenser	58	Appelez-nous	-
18	22002768		Dispenser Bottom	10	Appelez-nous	-
19	22002266		Cap, Siphon	10			$ 37.23
20	22002265		Cup, Siphon	10			$ 25.22
