Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 22003605 Base Weld Assembly 10 Appelez-nous -
2 315471 Retainer, Wire 10 Appelez-nous -
3 WP90767 Screw   (Replaces: 212276) 10 In-Stock Immediately $ 7.04

4 WP308605 Clip   (Replaces: 22002014) 10 Special Order $ 10.08

5 WP25001052 Pump   (Replaces: 22003244) 10 In-Stock Immediately $ 150.51

5 25001012 Pump Isolator Bracket 10 Special Order $ 96.17

6 WP8563585 Adjustable Leg & Nut   (Replaces: 22001915) 10 In-Stock Immediately $ 13.28

7 WP62739 Nut   (Replaces: Y052740) 10 Special Order $ 6.85

8 WP210684 Foot, Rubber   (Replaces: 210684) 10 In-Stock Immediately $ 14.09

9 22001988 Strut Assy-rear 10 Special Order $ 200.90

10 WP596669 Hose Clamp - 1-1/16 Inch   (Replaces: 202515) 10 In-Stock Immediately $ 7.56

11 22003262 Hose, Tub To Pump 10 Special Order $ 27.27

12 22003265 Bag, Plastic W/drawstring 10 Appelez-nous -
12 22003727 Pressure Switch, Pump Mounted 10 Special Order $ 86.24


    View Diagram in Separate Window     Print Icon   Print Part List

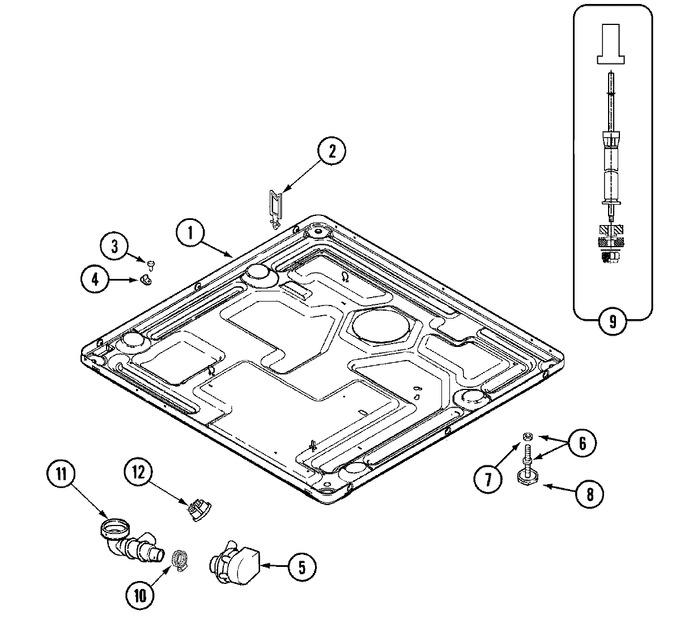

Diagram for MAH4000BWQ
