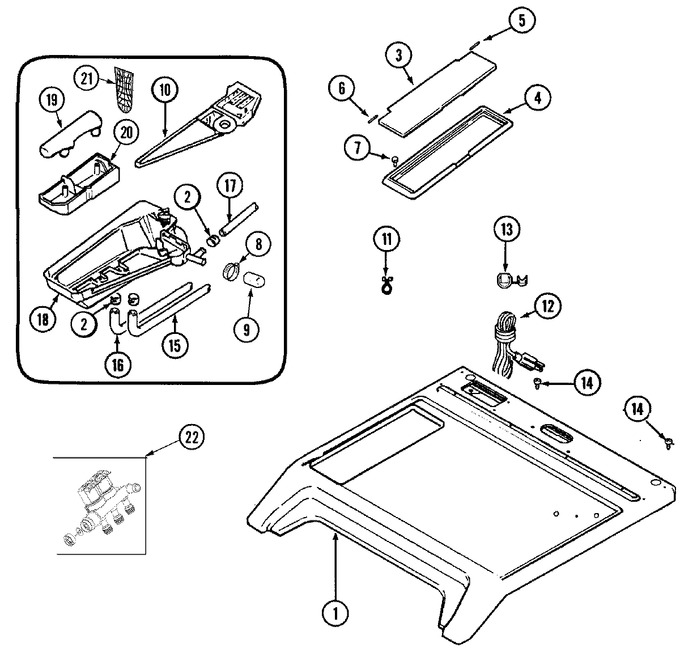

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003584 | Cover, Top (wht-as Pk) | 67 |
|
- | ||||
| 2 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 5 | WP6-912678 | Pin, Hinge (long) (Replaces: Y912678) | 10 |
|
$ 6.82 | ||||
| 6 | Y912679 | Pin, Hinge (short) | 10 |
|
$ 3.98 | ||||
| 7 | W11772394 | Screw, Dispenser Lid (Replaces: 22003681) | 58 |
|
Immediately | $ 10.94 | |||
| 7 | W11772394 | Screw, Bezel (Replaces: 22002060) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 | |||
| 9 | 22002796 | Cap | 10 |
|
- | ||||
| 10 | 22002555 | Flume, Dispenser | 10 |
|
- | ||||
| 10 | 22003322 | Top, Dispenser (flume) | 58 |
|
- | ||||
| 11 | WP74007164 | Wire Tie, Twist Lock (Replaces: 22002027) | 10 |
|
$ 6.85 | ||||
| 11 | WP90767 | Screw (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 12 | 22001178 | Cord, Power | 10 |
|
- | ||||
| 13 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 14 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 15 | 22002551 | Hose, Bleach | 10 |
|
- | ||||
| 16 | 22002552 | Hose, Fabric Softener----na | 10 |
|
- | ||||
| 17 | 22003457 | Hose, Detergent | 58 |
|
$ 5.02 | ||||
| 17 | 22002553 | Hose, Detergent | 10 |
|
- | ||||
| 18 | 22002554 | Bottom, Dispenser | 10 |
|
- | ||||
| 18 | 22003320 | Bottom, Dispenser Assy. | 58 |
|
- | ||||
| 19 | 22002266 | Cap, Siphon | 10 |
|
$ 37.23 | ||||
| 20 | 22002265 | Cup, Siphon | 10 |
|
$ 25.22 | ||||
| 21 | 22003321 | Grid, Dispenser | 87 |
|
- | ||||
| 22 | 12001930 | Dispenser Valve (Replaces: 22003846) | 87 |
|
$ 178.80 | ||||
| 23 | 12001927 | 3 Tube Up-date Kit W/.69 Cap | 87 |
|
- |
