SELECT A DIAGRAM

01 - Base


02 - Cabinet


03 - Cabinet - Rear


04 - Control Panel


05 - Door & Shroud


06 - Outer Tub


07 - Spinner Assembly & Outer Tub Cover


08 - Supplemental Information


09 - Wire Information


10 - Wiring Information


11 - Wiring Information


12 - Wiring Information

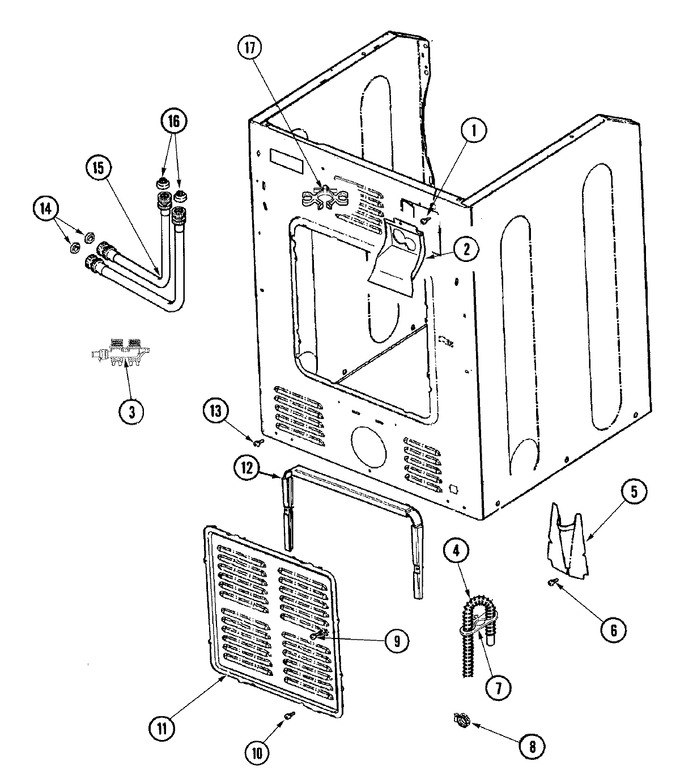

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw----na   (Replaces: 33001245)	10			$ 6.98
2	WP22003834		Water Valve W` Thermistor   (Replaces: 22003834)	10		Immediately	$ 136.93
2	W11772394		Screw   (Replaces: 22003263)	10		Immediately	$ 10.94
3	33002212		Bracket, Water Valve	10	Appelez-nous	-
4	12001807		Kit Nc, Drain Hose Replacement	10			$ 49.51
5	35-3401		Hose, Inlet (hot)	10	Appelez-nous	-
5	22002704		Cover, Drain Hose	10	Appelez-nous	-
6	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
7	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
8	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
9	WP67006908		Screw   (Replaces: 22002295)	10		Immediately	$ 7.16
9	WP489128		Screw   (Replaces: 22002925)	11			$ 9.79
10	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
11	22004355		Rear Access Panel	11	Appelez-nous	-
11	22002092		Panel, Access	10	Appelez-nous	-
12	22002022		Spacer, Access Panel	10	Appelez-nous	-
13	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
14	Y013783		Gasket, Inlet Hose	10			$ 18.72
15	WP89503		Hose, 4` Inlet   (Replaces: 33-7891)	10		Immediately	$ 21.68
16	22002229		Strainer	10	Appelez-nous	-
17	22002932		Clip, Drain Hose	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
