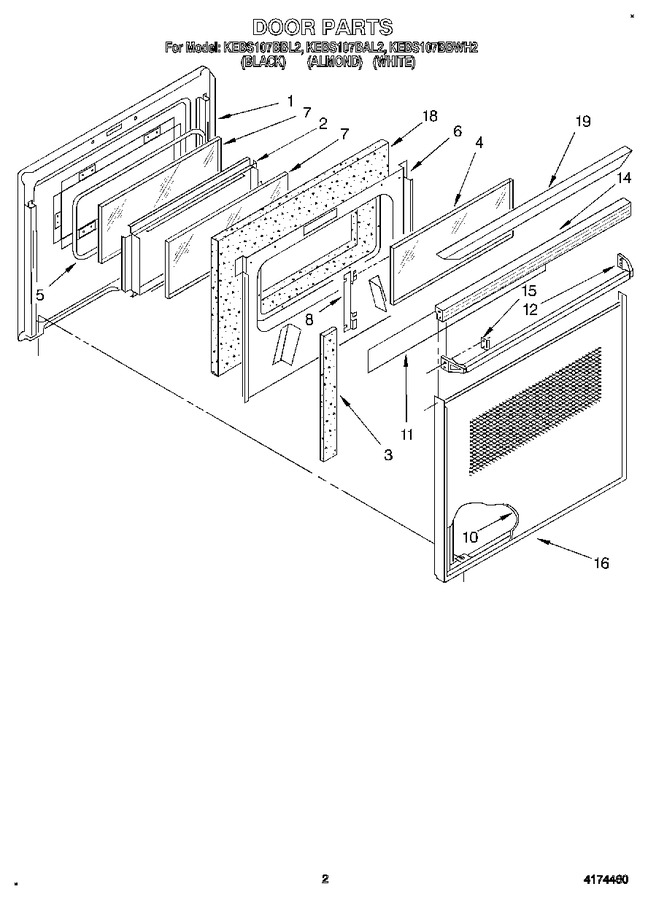

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
2	3148234		Frame, Window		Appelez-nous	-
2	3185647		Screw		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3185647		Screw (4)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	4173601		Screw (4)		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3188720		Retainer, Glass (2)		Appelez-nous	-
10	3188052		Glass, Panel (black Model)		Appelez-nous	-
10	3188051		Glass, Panel (almond Model)		Appelez-nous	-
10	3188050		Glass, Panel (white Model)		Appelez-nous	-
11	3188706		Foil, Door		Appelez-nous	-
12	3186526		Handle, Oven Door (almond Model)		Appelez-nous	-
12	3149253		Handle, Oven Door (screw (4))		Appelez-nous	-
12	3186524		Handle, Oven Door (black Model)		Appelez-nous	-
12	3186525		Handle, Oven Door (white Model)		Appelez-nous	-
14	3148223		Top, Door (black Model)		Appelez-nous	-
14	3149355		Top, Door (white/almond Model)		Appelez-nous	-
15	3149333		Screw				$ 5.33
15	3148282		Clip, Mtg (2)				$ 8.69
16	3187920		Frame, Door (white Model)		Appelez-nous	-
16	3171530		Frame, Door (black Model)		Appelez-nous	-
16	3187921		Frame, Door (almond Model)		Appelez-nous	-
18	3147951		Insulation, Door		Appelez-nous	-
19	3188375		Cap, Top (almond Model)		Appelez-nous	-
19	3181366		Cap, Top (black Model)		Appelez-nous	-
19	3181367		Cap, Top (white Model)		Appelez-nous	-
