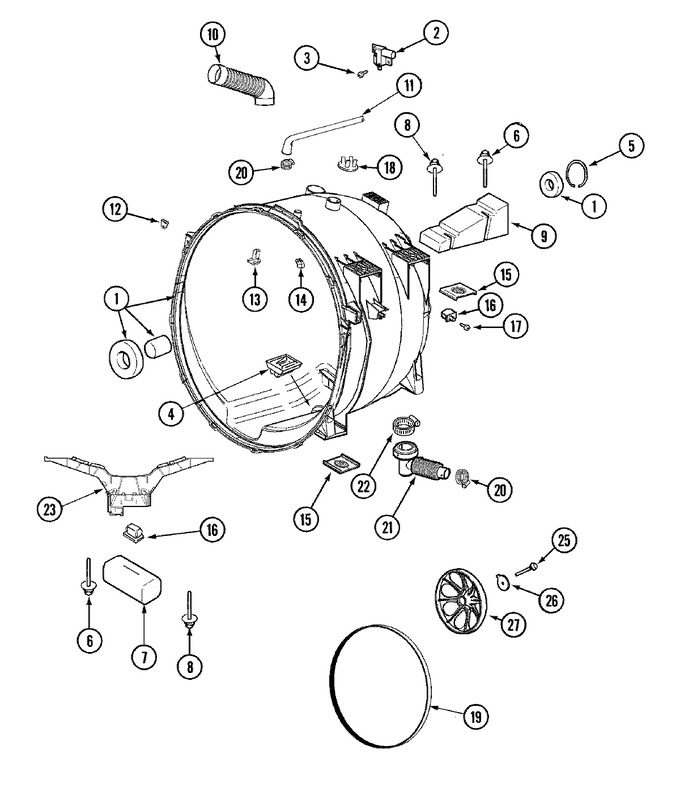

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22004464 | Outer Tub Cover Kit | 38 |
|
$ 673.27 | ||||
| 1 | 22003327 | Clamp, Lcd Harness To Cover | 10 |
|
- | ||||
| 1 | 22004079 | Outer Tub/tub Cover Kit | 22 |
|
- | ||||
| 1 | 22003413 | Outer Tub Assy.(nc As Packed) | 10 |
|
- | ||||
| 2 | 22003302 | Switch, Internal Unbalance | 19 |
|
$ 44.42 | ||||
| 2 | 22003302 | Switch, Internal Unbalance | 10 |
|
$ 44.42 | ||||
| 3 | WP9740848 | Screw (Replaces: 22002300) | 10 |
|
Immediately | $ 7.07 | |||
| 3 | 22002061 | Screw | 19 |
|
- | ||||
| 4 | 22003710 | Sump Cap W/ Labyrinth Feature | 10 |
|
$ 34.38 | ||||
| 4 | W11772394 | Screw (Replaces: 22003263) | 10 |
|
Immediately | $ 10.94 | |||
| 5 | 22001981 | Ring, Retaining | 10 |
|
- | ||||
| 6 | 33002973 | Screw, No.9-15 X 1.00 Hx Ws | 39 |
|
- | ||||
| 6 | 22003828 | Plated Bolt, Double Sems Su | 85 |
|
- | ||||
| 7 | 22003827 | Cushion | 85 |
|
- | ||||
| 8 | 33002973 | Screw, No.9-15 X 1.00 Hx Ws | 39 |
|
- | ||||
| 8 | 22003828 | Plated Bolt, Double Sems Su | 85 |
|
- | ||||
| 9 | 22002102 | Weight, Counter Balance | 10 |
|
- | ||||
| 10 | WP285655 | Clamp, Hose Double Wire (Replaces: 22003295) | 10 |
|
Immediately | $ 7.55 | |||
| 10 | WP22002083 | Hose, Injector (Replaces: 22002083) | 10 |
|
$ 124.55 | ||||
| 11 | 22003833 | Hose, Tub Shower | 10 |
|
$ 69.09 | ||||
| 12 | 22002103 | Clip, U | 10 |
|
- | ||||
| 13 | 22004310 | Deflector, Water (Replaces: 22002959) | 10 |
|
$ 13.68 | ||||
| 14 | 22002006 | Clip | 10 |
|
- | ||||
| 15 | 22002065 | Nut, Counter Balance | 10 |
|
- | ||||
| 16 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 19 |
|
$ 80.94 | ||||
| 16 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 10 |
|
$ 80.94 | ||||
| 17 | 22002061 | Screw | 10 |
|
- | ||||
| 18 | 22002797 | Clip, Hose (saddle Horn) | 10 |
|
- | ||||
| 18 | 22002061 | Screw | 10 |
|
- | ||||
| 19 | 12001788 | Belt, Drive (Replaces: 22002313) | 10 |
|
Immediately | $ 37.69 | |||
| 20 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 21 | 22003262 | Hose, Tub To Pump | 10 |
|
$ 27.27 | ||||
| 22 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 10 |
|
$ 7.31 | ||||
| 23 | 22003826 | Lower Bracket | 10 |
|
- | ||||
| 23 | 22004472 | Bracket, Lower | 38 |
|
$ 77.47 | ||||
| 24 | WP308605 | Clip (Replaces: 22002014) | 10 |
|
$ 10.08 | ||||
| 25 | WP22003937 | Screw, Spinner (Replaces: 22002057) | 10 |
|
$ 7.43 | ||||
| 26 | WP22003936 | Washer, Spinner Shaft (Replaces: 22002055) | 10 |
|
$ 7.20 | ||||
| 26 | WP22003936 | Washer (1 1/4``) (Replaces: 22003936) | 17 |
|
$ 7.20 | ||||
| 27 | 22002315 | Pulley, Spinner (Replaces: 22001998) | 10 |
|
$ 157.26 |
