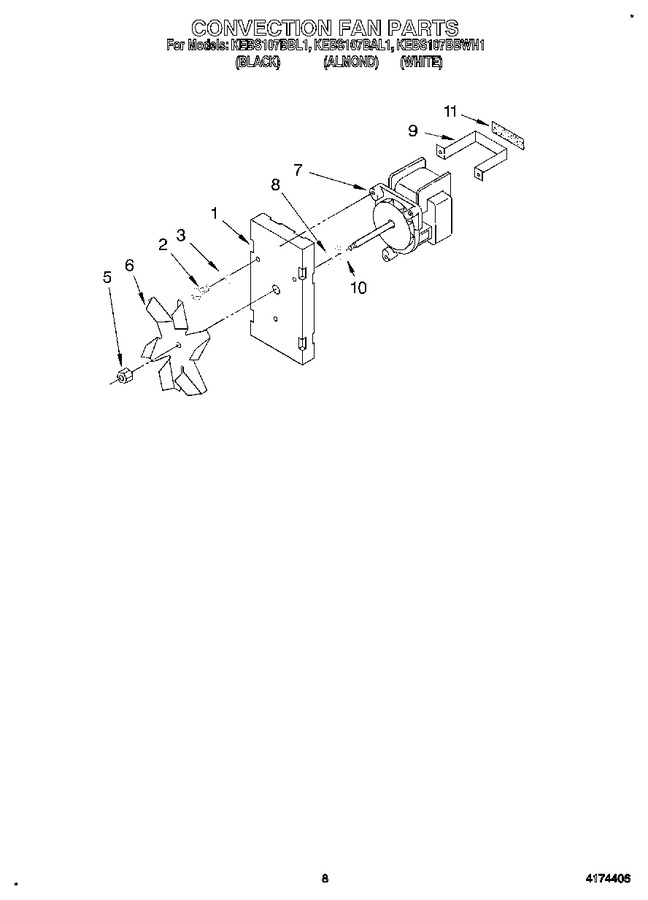

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Vent And Latch
04 - Oven, Literature
05 - Internal Oven
06 - Convection Fan
07 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3179117 | Screw (4) |
|
- | |||||
| 1 | 3182045 | Plate, Mounting |
|
- | |||||
| 2 | 4173193 | Screw, Fan Mounting |
|
- | |||||
| 3 | 4173194 | Lockwasher (3) |
|
- | |||||
| 5 | 4173237 | Nut (left Hand) |
|
- | |||||
| 6 | 4173236 | Fan |
|
- | |||||
| 7 | 3183220 | Motor |
|
- | |||||
| 8 | 4173238 | E-ring |
|
- | |||||
| 9 | 3181750 | Bracket, Guard |
|
- | |||||
| 9 | 3179117 | Screw (4) |
|
- | |||||
| 10 | 4173230 | Flat Washer |
|
- | |||||
| 11 | 3179790 | Gasket, Foam |
|
- |
