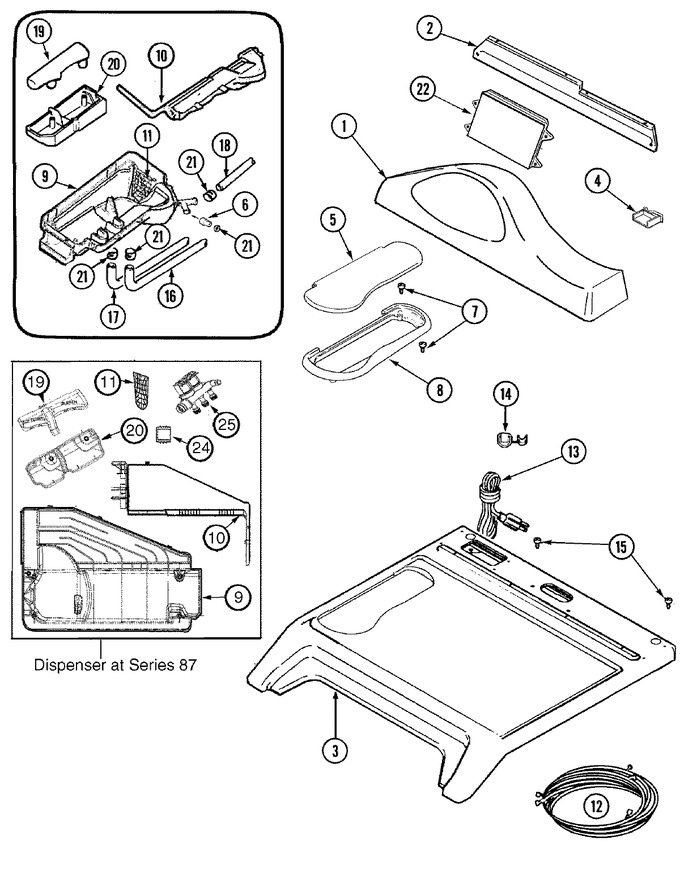

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003807 | Medallion, Console (bsq) | 10 |
|
- | ||||
| 1 | 22004443 | Lcd Console Assy-bsq - As Pack | B4 |
|
$ 53.98 | ||||
| 1 | 22003806 | Medallion, Console (wht) | 10 |
|
- | ||||
| 1 | 22003241 | Console, Lcd W/membrane (bsq) | 10 |
|
- | ||||
| 2 | 22002061 | Screw | 70 |
|
- | ||||
| 2 | 22002061 | Screw | 68 |
|
- | ||||
| 2 | 22003581 | Back, Console Panel | 67 |
|
- | ||||
| 2 | 22003255 | Panel, Back | 10 |
|
- | ||||
| 2 | Y22002339 | Screw | 10 |
|
- | ||||
| 3 | 22002662 | Cover, Top (bsq) | 10 |
|
- | ||||
| 3 | 22003585 | Cover, Top (bsq-as Pk) | 67 |
|
- | ||||
| 4 | 22003323 | Cover, Console Plug (bsq) | 10 |
|
- | ||||
| 5 | 22003278 | Lid, Dispenser (bsq) | 10 |
|
- | ||||
| 6 | 22003260 | Extension, Nozzle | 10 |
|
- | ||||
| 7 | W11772394 | Screw, Dispenser Lid (Replaces: 22003681) | 10 |
|
Immediately | $ 10.94 | |||
| 8 | 22003277 | Bezel, Dispenser (bsq) | 10 |
|
- | ||||
| 9 | 22003844 | Dispenser Bottom | 87 |
|
$ 66.94 | ||||
| 9 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 10 |
|
Immediately | $ 7.56 | |||
| 9 | 22003320 | Bottom, Dispenser Assy. | 10 |
|
- | ||||
| 10 | 22003845 | Dispenser Cover (flume) | 87 |
|
- | ||||
| 10 | 22003322 | Top, Dispenser (flume) | 10 |
|
- | ||||
| 11 | 22003321 | Grid, Dispenser | 10 |
|
- | ||||
| 12 | 22003857 | Wire Harness | 88 |
|
- | ||||
| 12 | 22003858 | Emi Suppression Filter, 16a | 88 |
|
$ 51.54 | ||||
| 12 | 22003281 | Harness, Wire | 10 |
|
- | ||||
| 12 | 22003283 | Harness, Unbalance Switch | 10 |
|
- | ||||
| 12 | 2205144 | Harness, Wire | C1 |
|
- | ||||
| 12 | 2205144 | Harness, Wire | B8 |
|
- | ||||
| 12 | 22003798 | Wire Harness | 74 |
|
- | ||||
| 12 | 22004315 | Wire Harness | A7 |
|
- | ||||
| 12 | WP489128 | Screw, Serrated Washer Head Hx (Replaces: 22003817) | 88 |
|
$ 9.79 | ||||
| 12 | 22003855 | Harness, Motor/motor Control | 88 |
|
- | ||||
| 12 | WP22004046 | Control Assy., Motor (Replaces: 22003851) | 88 |
|
$ 376.55 | ||||
| 12 | 22003511 | Insulation | 88 |
|
- | ||||
| 12 | 22003856 | Motor, Variable Speed | 88 |
|
$ 322.00 | ||||
| 12 | 22003425 | Filter, Ac Line | 10 |
|
- | ||||
| 12 | 22004463 | Harness,wire | B4 |
|
- | ||||
| 12 | 22002782 | Pad, Foam (sound Dampener) | 88 |
|
$ 5.53 | ||||
| 12 | 22004047 | Harness, Motor/motor Control | 98 |
|
- | ||||
| 13 | WP22003062 | Power Cord As Wrapped (Replaces: 22003853) | 88 |
|
$ 121.96 | ||||
| 13 | WP22003062 | Cord, Power (as Wrapped) (Replaces: 22003062) | 10 |
|
$ 121.96 | ||||
| 14 | 211881 | Grommet, Cord | 10 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 16 | 22002551 | Hose, Bleach | 10 |
|
- | ||||
| 17 | 22002552 | Hose, Fabric Softener----na | 10 |
|
- | ||||
| 18 | 22003457 | Hose, Detergent | 10 |
|
$ 5.02 | ||||
| 19 | 22002266 | Cap, Siphon | 10 |
|
$ 37.23 | ||||
| 19 | 22004082 | Seal Insertion Tool | 10 |
|
$ 3.15 | ||||
| 19 | 22003849 | Siphon Cap | 87 |
|
$ 38.07 | ||||
| 20 | 22002265 | Cup, Siphon | 10 |
|
$ 25.22 | ||||
| 20 | 22003848 | Siphon Cup | 87 |
|
$ 28.35 | ||||
| 21 | WP489503 | Clamp - 15/16`` (Replaces: 205161) | 10 |
|
Immediately | $ 9.68 | |||
| 21 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 | |||
| 22 | 22004317 | Control Board - Lcd As Pk-sam | B1 |
|
$ 474.34 | ||||
| 22 | 22004317 | Control Board - Lcd As Pk-sam | A7 |
|
$ 474.34 | ||||
| 22 | 22003609 | Control Board,lcd W/mtg(aspk) | 73 |
|
- | ||||
| 22 | 22004162 | Control Board (as Pack) | A3 |
|
- | ||||
| 22 | 22003884 | Control Board (as Pack) | 81 |
|
- | ||||
| 22 | 22003609 | Control Board,lcd W/mtg(aspk) | 70 |
|
- | ||||
| 22 | 22003315 | Control Board/mtg Bracket-lcd | 10 |
|
- | ||||
| 23 | 22003835 | Dispenser Assembly | 87 |
|
- | ||||
| 25 | 12001930 | Dispenser Valve Asy Kit | 87 |
|
$ 178.80 | ||||
| 26 | 22003328 | Tag, Energy (lcd) | 10 |
|
- | ||||
| 27 | 16010061 | Manual Kit, Service | 10 |
|
- | ||||
| 28 | 12001927 | 3 Tube Up-date Kit W/.69 Cap | 87 |
|
- | ||||
| 28 | 22003309 | Script, Video (frch & Spn Lcd) | 10 |
|
- | ||||
| 29 | 22003307 | Video, Use & Care (lcd) | 10 |
|
- | ||||
| 30 | WP285655 | Clamp, Hose (Replaces: 22001640) | 87 |
|
Immediately | $ 7.55 | |||
| 31 | 22003832 | Fill Hose, Dispenser | 87 |
|
$ 48.05 | ||||
| 32 | 22003833 | Hose, Tub Shower | 87 |
|
$ 69.09 | ||||
| 33 | 62729250 | Manual, Use & Care (arabic) | 10 |
|
- | ||||
| 33 | Y2205205 | Manual, Use & Care | C2 |
|
- | ||||
| 33 | 2205207 | Manual, Use & Care | C2 |
|
- | ||||
| 33 | Y2201828 | Manual, Use & Care | B3 |
|
- | ||||
| 33 | 22003305 | Manual, Use & Care | 10 |
|
- |
