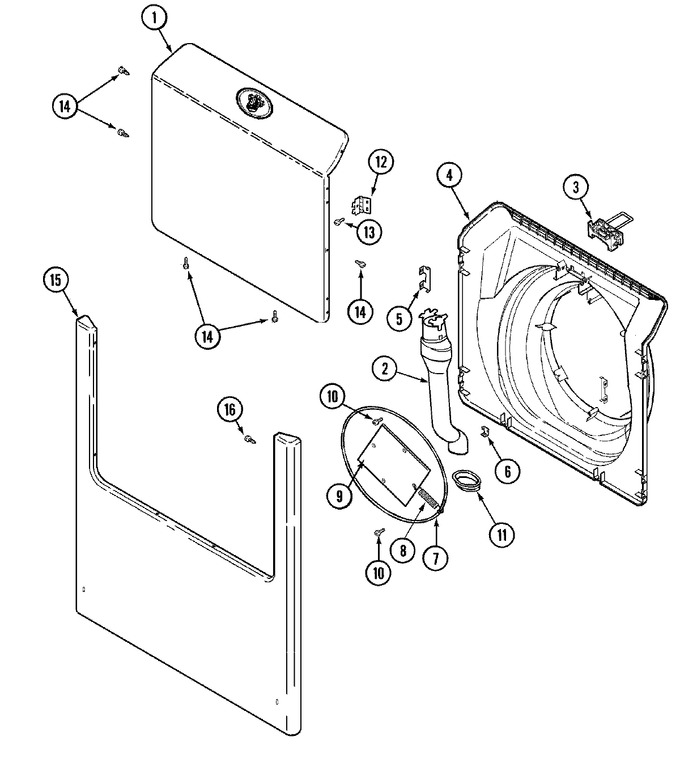

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003328		Tag, Energy (lcd)	10	Appelez-nous	-
1	22003242		Door, Outer W/medallion (wht)	10	Appelez-nous	-
2	WP22003593		Assy, Door Latch   (Replaces: 22003246)	10		Immediately	$ 253.68
2	22002990		Vent Tube Assembly	10	Appelez-nous	-
3	WP22003269		Door, Lock Hoop Assembly   (Replaces: 22003269)	10			$ 49.33
4	WP22003275		Door, Inner (wht)   (Replaces: 22003275)	10		Immediately	$ 165.54
5	22002038		Clip, Door (double)	10	Appelez-nous	-
6	22002039		Clip, Door (single)	10			$ 8.15
7	22002104		Wireframe	10	Appelez-nous	-
8	22002356		Spring, Plate	10	Appelez-nous	-
9	22002094		Plate	10	Appelez-nous	-
10	22002007		Screw	10	Appelez-nous	-
11	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	10			$ 50.41
12	WP22002798		Hinge, Door   (Replaces: 22002000)	10			$ 77.72
12	22002095		Cover, Hinge (wht)	10	Appelez-nous	-
13	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
14	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
15	22002305		Insulation, Front Panel	10	Appelez-nous	-
15	22002241		Panel, Front (wht)	10	Appelez-nous	-
15	22004428		Seal, Export	10			$ 9.49
15	22002239		Clip, Lower Front Panel	10			$ 5.84
15	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
16	22002012		Screw, Hinge	10			$ 5.48
17	22002244		Clip, Grounding	10	Appelez-nous	-
