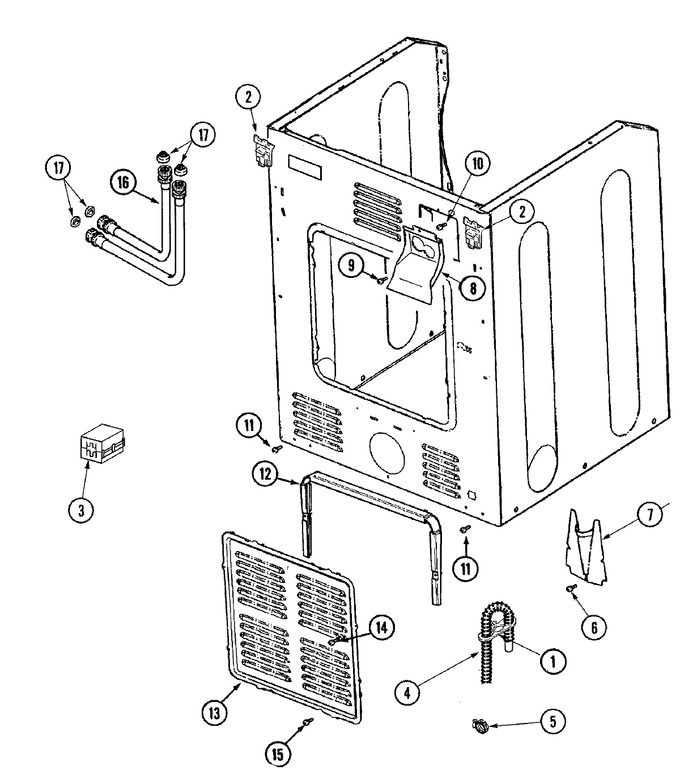

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22002892		Retainer, Drain Hose   (Replaces: 22002892)	10			$ 76.85
2	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
2	22003367		Hinge, Plastic	10	Appelez-nous	-
3	33002501		Filter, Emi	10	Appelez-nous	-
4	22002932		Clip, Drain Hose	10	Appelez-nous	-
4	12001807		Kit Nc, Drain Hose Replacement	10			$ 49.51
4	35-2890		Cable Tie	10	Appelez-nous	-
5	WP285655		Clamp, Drain Hose   (Replaces: 22001984)	10		Immediately	$ 7.55
6	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
7	22002093		Cover, Drain Hose	10	Appelez-nous	-
8	33002212		Bracket, Water Valve	10	Appelez-nous	-
8	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
9	WP489128		Screw   (Replaces: 22001996)	10			$ 9.79
10	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
11	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
12	22002022		Spacer, Access Panel	10	Appelez-nous	-
13	22004355		Rear Access Panel	11	Appelez-nous	-
13	22002092		Panel, Access	10	Appelez-nous	-
14	WP67006908		Screw   (Replaces: 22002295)	10		Immediately	$ 7.16
14	WP489128		Screw   (Replaces: 22002925)	11			$ 9.79
15	WP489128		Screw   (Replaces: 22002925)	10			$ 9.79
16	22003758		Hose, Inlet (hot)	10	Appelez-nous	-
16	22003759		Hose, Inlet (cold)	10	Appelez-nous	-
17	22003776		Washer, Rubber - 3mm	10	Appelez-nous	-
17	22003774		Washer, Rubber - 2mm	10	Appelez-nous	-
17	22003775		Strainer, Nylon	10	Appelez-nous	-
