SELECT A DIAGRAM
01 - Oven
02 - Oven Door
03 - Internal Oven

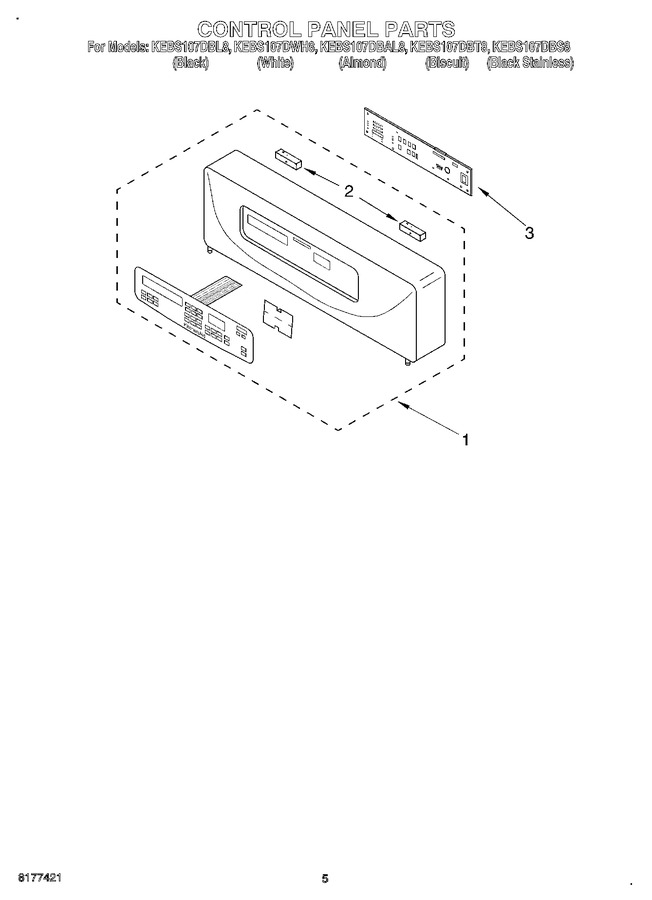

04 - Control Panel, Literature
05 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451908 | Control Panel Assy. W/membrane Switch (black & Bs Models) |
|
- | |||||
| 1 | 4451913 | Control Panel Assy. W/membrane Switch (almond Model) |
|
- | |||||
| 1 | 4451915 | Control Panel Assy. W/membrane Switch (biscuit Model) |
|
- | |||||
| 1 | 4159465 | Control Panel Assy. W/membrane Switch (screw) |
|
- | |||||
| 1 | 4451911 | Control Panel Assy. W/membrane Switch (white Model) |
|
- | |||||
| 2 | 4451034 | Gasket, Control Panel |
|
- | |||||
| 3 | 4451845 | Microcomputer |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| LIT3191638 | Safer Cooking Tips |
|
- | ||||||
| LIT4450411 | Installation Instructions |
|
- | ||||||
| LIT4451952 | Use & Care Guide |
|
- | ||||||
| LIT4451876 | Tech Sheet |
|
- | ||||||
| LIT4449066 | Cookbook T/c |
|
- | ||||||
| LIT4449264 | Easy Set Guide |
|
- | ||||||
| LIT3192225 | Installation/ Undercounter |
|
- | ||||||
| LIT4450841 | Installation, Mwo Trim Kit |
|
- |
