01 - Cabinet
02 - Control Panel
03 - Door
04 - Supplemental Information
05 - Tub Back
06 - Tub Front
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

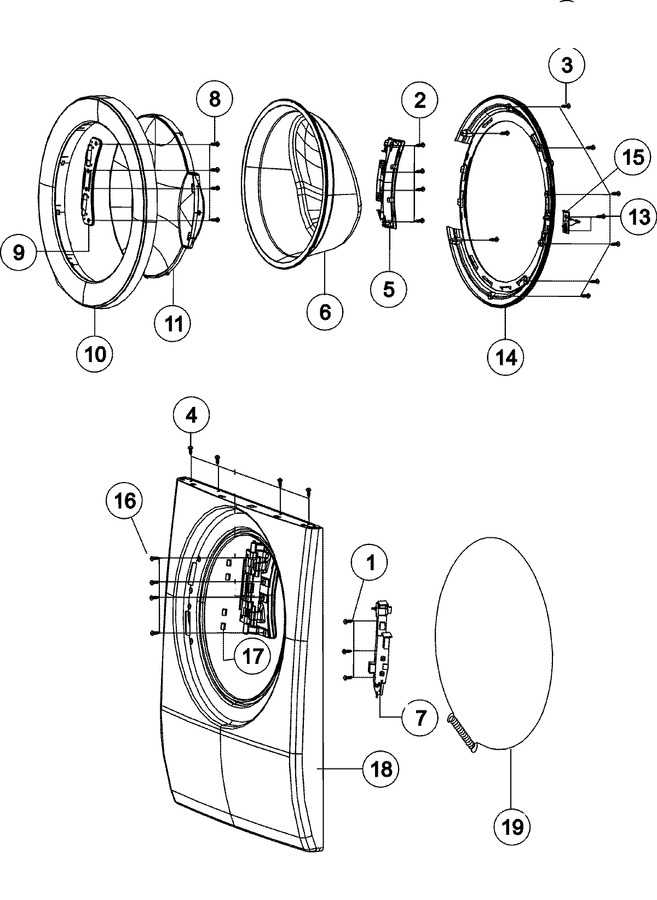

| 1 | 34001251 | Screw-tapping | 10 |
|
- | ||||
| 2 | 34001251 | Screw-tapping | 10 |
|
- | ||||
| 3 | 34001251 | Screw-tapping | 10 |
|
- | ||||
| 4 | 34001252 | Screw-tapping | 10 |
|
- | ||||
| 5 | 34001253 | Guide-holder Glass | 10 |
|
- | ||||
| 6 | 34001254 | Door-glass | 10 |
|
- | ||||
| 7 | WP8182634 | Door-lock S/w (Replaces: 34001265) | 10 |
|
Immediately | $ 97.07 | |||
| 8 | WP98008545 | Screw-tapping (Replaces: 34001232) | 10 |
|
$ 15.94 | ||||
| 9 | 34001255 | Bracket-holder | 10 |
|
$ 26.81 | ||||
| 10 | 34001392 | Cover-door (platinum) | 10 |
|
- | ||||
| 11 | 34001257 | Door Safety | 10 |
|
$ 131.78 | ||||
| 12 | 34001264 | Assy-hinge | 10 |
|
$ 164.30 | ||||
| 13 | 34001259 | Screw-tapping | 10 |
|
$ 6.09 | ||||
| 14 | 34001285 | Holder-glass | 10 |
|
$ 99.68 | ||||
| 15 | WP34001260 | Lever-door (Replaces: 34001260) | 10 |
|
Immediately | $ 61.64 | |||
| 16 | 34001286 | Screw-machine | 10 |
|
- | ||||
| 17 | 34001262 | Guide-bar | 10 |
|
- | ||||
| 18 | 34001468 | Front Panel (platinum) | 10 |
|
- | ||||
| 18 | 34001393 | Frame-front (platinum) | 10 |
|
- | ||||
| 19 | 34001266 | Assy-wire Diaphragm | 10 |
|
$ 20.71 |
