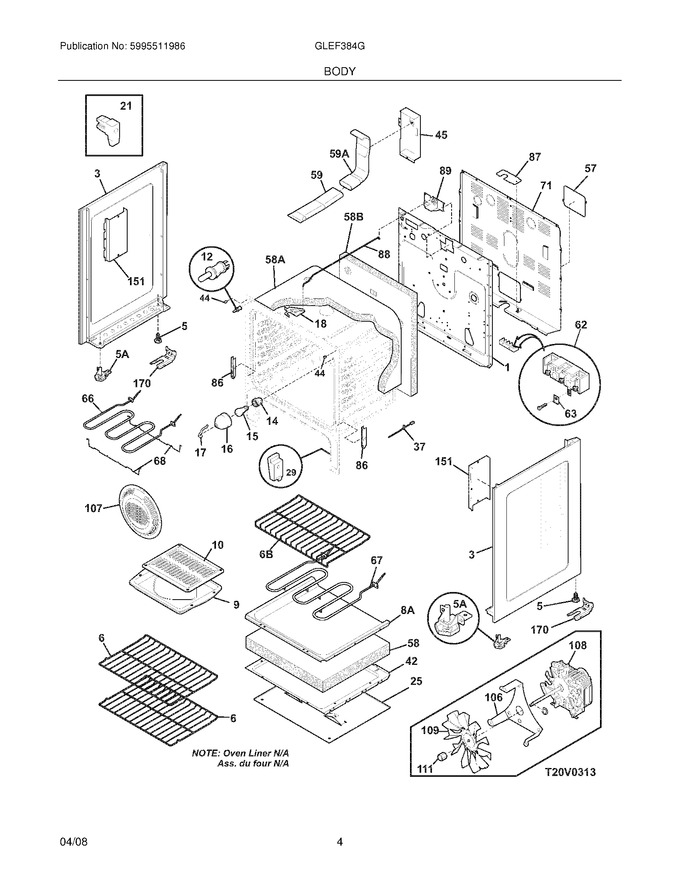

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401800		Panel,main Back		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven ,(2)			Immediately	$ 103.48
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
25	316406200		Shield,heat ,lower				$ 87.97
29	807047102		Glide,drawer ,front   (Replaces: 316407301)			Immediately	$ 23.82
42	316407700		Shield,wool ,lower				$ 131.19
44	316246501		Spacer,oven Door				$ 12.13
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316457801		Cover,access   (Replaces: 316457800)				$ 12.89
58	316403801		Insulation,oven Sump		Appelez-nous	-
59	316208401		Vent Tube,assembly ,w/catalyst				$ 194.14
62	5304409888		Terminal Block Kit			Immediately	$ 26.69
63	316278800		Plate,grounding Strap		Appelez-nous	-
67	316415900		Element,bake ,3500w ,6 Pass			Immediately	$ 259.25
68	316429100		Support,element ,broil				$ 62.51
71	316422304		Shield,rear Wall				$ 115.53
86	316441300		Receptacle,hinge				$ 21.97
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112003)			Immediately	$ 18.91
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
3A	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406600)			Immediately	$ 69.77
58B	316406500		Insulation,oven Back				$ 88.60
59A	316208304		Tube,oven Vent ,upper				$ 80.09
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6B	316524200		Rack,oven ,small ,(1)		Appelez-nous	-
8A	316411102		Base,bake Element				$ 123.27
F108	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 225.67
F12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F66	316430900		Element,broil ,4000w			Immediately	$ 256.20
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316443021		Wiring Harness,main		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 14.18
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316085600		Insulator		Appelez-nous	-
NI	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	5303321321		Paint,touch-up,black			Immediately	$ 21.97
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black				$ 12.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
