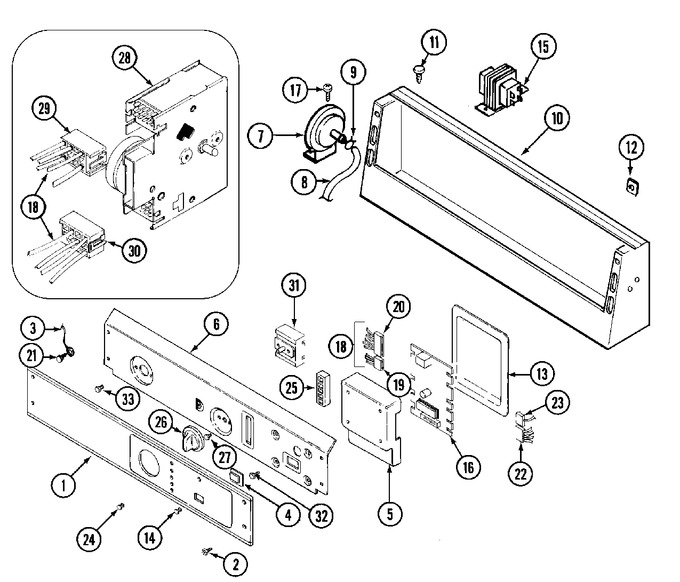

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Panel, Control | A0 |
|
- | ||||
| 002 | WPW10131119 | Screw, Control Panel (Replaces: 215506) | A0 |
|
$ 6.26 | ||||
| 003 | 205810 | Wire, Ground | A0 |
|
- | ||||
| 004 | NLA | Window, Data Acquisition | A0 |
|
- | ||||
| 005 | NLA | Enclosure, Circuit Board | A0 |
|
- | ||||
| 006 | NLA | Plate, Backup (wht) | A0 |
|
- | ||||
| 007 | WP22001308 | Switch, Water Level (Replaces: 22001308) | A0 |
|
Immediately | $ 191.68 | |||
| 008 | WP22001619 | Tube, Water Level Switch (Replaces: 212942) | A0 |
|
$ 75.73 | ||||
| 009 | WP596669 | Clamp, Water Level Tube (Replaces: 410296) | A0 |
|
Immediately | $ 7.56 | |||
| 010 | 206780 | Console (wht) | A0 |
|
- | ||||
| 010 | 206780L | (alm) | A0 |
|
- | ||||
| 011 | WP90767 | Screw, Console (Replaces: 212276) | A0 |
|
Immediately | $ 7.04 | |||
| 012 | 215003 | Clip, Screw | A0 |
|
- | ||||
| 013 | NLA | Cover, Enclosure | A0 |
|
- | ||||
| 014 | NLA | Lens, Light (grn) | A0 |
|
- | ||||
| 015 | WP90767 | Screw, Transformer (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 015 | NLA | Transformer | A0 |
|
- | ||||
| 016 | NLA | Board, Data Acquisition | A0 |
|
- | ||||
| 017 | WP90767 | Screw, Water Level Switch (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 018 | NLA | Wire Harness, Main | A0 |
|
- | ||||
| 019 | 314529 | Connector, Edgeboard (4 Pin) | A0 |
|
- | ||||
| 020 | NLA | Connector, Edgeboard (14 Pin) | A0 |
|
- | ||||
| 021 | WP489128 | Screw, Ground Wire (Replaces: 210186) | A0 |
|
$ 9.79 | ||||
| 022 | 206799 | Optic Switch Assembly | A0 |
|
$ 113.64 | ||||
| 022 | NLA | Connector, Edgeboard----na | A0 |
|
- | ||||
| 023 | 208045 | Harness, Wire (sensor Swtchs) | A0 |
|
- | ||||
| 023 | 22001361 | Connector, Edgeboard | A0 |
|
- | ||||
| 024 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | A0 |
|
Immediately | $ 7.14 | |||
| 025 | 206881 | Light, Indicator | A0 |
|
$ 96.51 | ||||
| 026 | 206894 | Knob, Selector | A0 |
|
- | ||||
| 026 | 215561 | Bumper, Knob | A0 |
|
- | ||||
| 027 | WP488234 | Screw, Temperature Switch (Replaces: Y313588) | A0 |
|
$ 6.07 | ||||
| 028 | WP22001083 | Timer (Replaces: 22001083) | A0 |
|
Immediately | $ 568.89 | |||
| 029 | 22001349 | Housing, Connector (blk) | A0 |
|
- | ||||
| 030 | 22001350 | Housing, Connector (wht) | A0 |
|
- | ||||
| 030 | NLA | Connector, Wire | A0 |
|
- | ||||
| 031 | COMM PART | Switch, Temp. (Replaces: 205353) | A0 |
|
- | ||||
| 032 | 312956 | Screw Board Enclosure | A0 |
|
- | ||||
| 033 | 216412 | Screw, Timer | A0 |
|
- |
