SELECT A DIAGRAM

01 - Oven, Literature

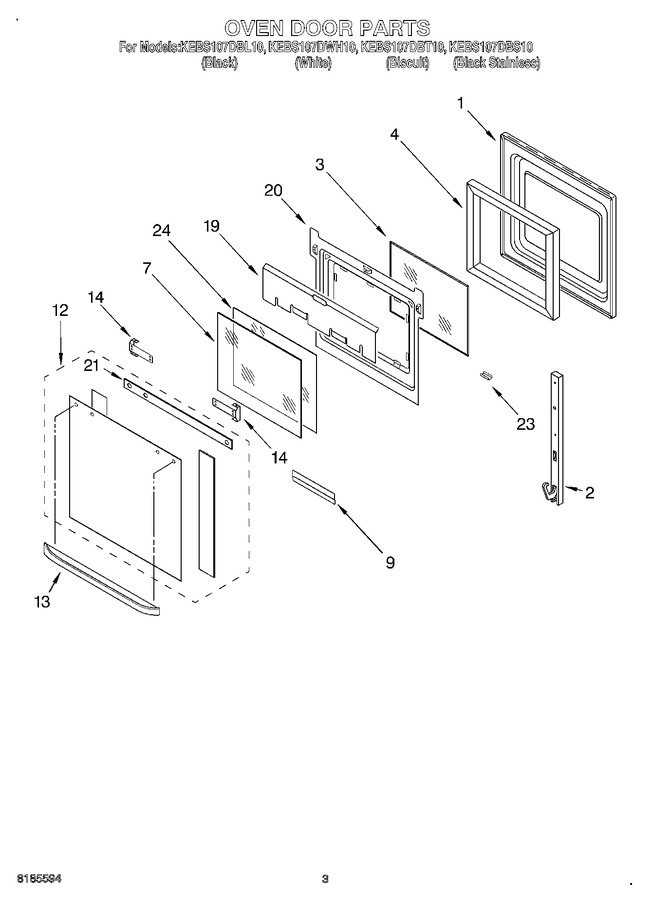

02 - Oven Door


03 - Internal Oven


04 - Control Panel


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
2	WP4455525		Hinge, Door   (Replaces: 4455525)			Immediately	$ 69.96
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 151.10
9	4451668		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
12	4452074		Door Glass, Assy (black Model)		Appelez-nous	-
12	4452477		Door Glass, Assy (black-stainless)		Appelez-nous	-
12	4452147		Door Glass, Assy (biscuit Model)		Appelez-nous	-
12	4452075		Door Glass, Assy (white Model)		Appelez-nous	-
13	4452129		Handle, Door (biscuit)		Appelez-nous	-
13	4448414		Door Handle (black & Bs Model)		Appelez-nous	-
13	4448415		Handle, Door (white Model)		Appelez-nous	-
14	W10276642		Screw   (Replaces: 4451040)				$ 5.49
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
20	4451671		Retainer, Glass		Appelez-nous	-
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black & Bs Models)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
23	4452119		Retainer, Clip (biscuit Model)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45

    View Diagram in Separate Window       Print Part List
