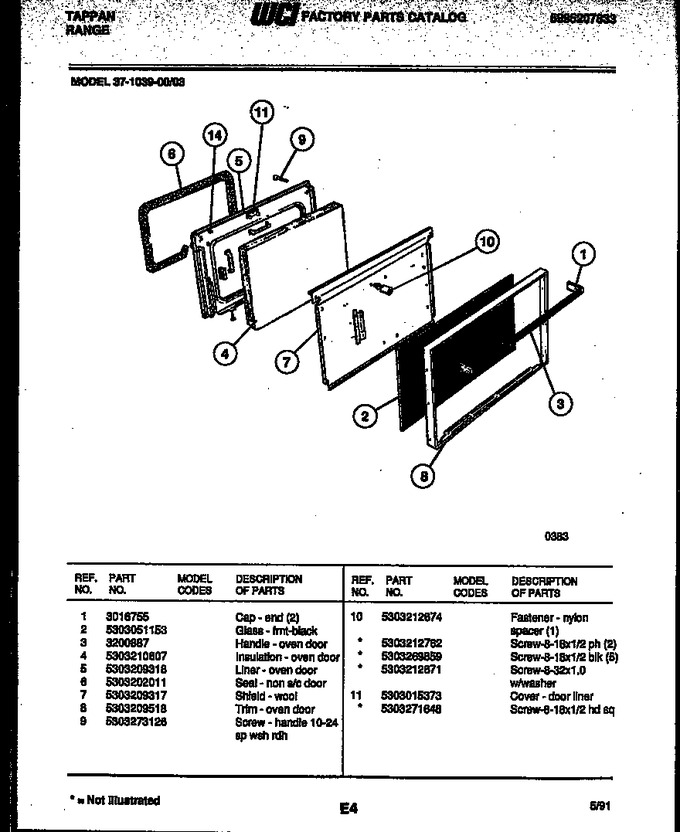

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 5303051153 | Glass - Frnt (black) |
|
- | |||||
| 3 | 3200887 | Handle-oven Door |
|
- | |||||
| 4 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 5 | 5303209318 | Liner-oven Door |
|
- | |||||
| 6 | 5303202011 | Seal - Non S/c Door |
|
$ 166.84 | |||||
| 7 | 5303209317 | Shield-wool |
|
- | |||||
| 8 | 5303209518 | Trim-oven Door |
|
- | |||||
| 9 | 5303273126 | Screw - Handle 10-24 Sp Wsh Rdh |
|
- | |||||
| 10 | 5303212674 | Fastener-nylon Spacer (1) |
|
- | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| *51656 | 5303271648 | Screw-8-18 X 1/2 Hd Sq |
|
Immediately | $ 13.46 | ||||
| 10A | 5303212762 | Screw-8-18 X 1/2 Ph (2) (non-illustrated) |
|
- | |||||
| 10B | 5303269859 | Screw-8-18 X 1/2 Blk (5) (non-illustrated) |
|
- | |||||
| 10C | 5303212671 | Screw-8-32 X 1.0 W/washer (non-illustrated) |
|
- |
